AXIO

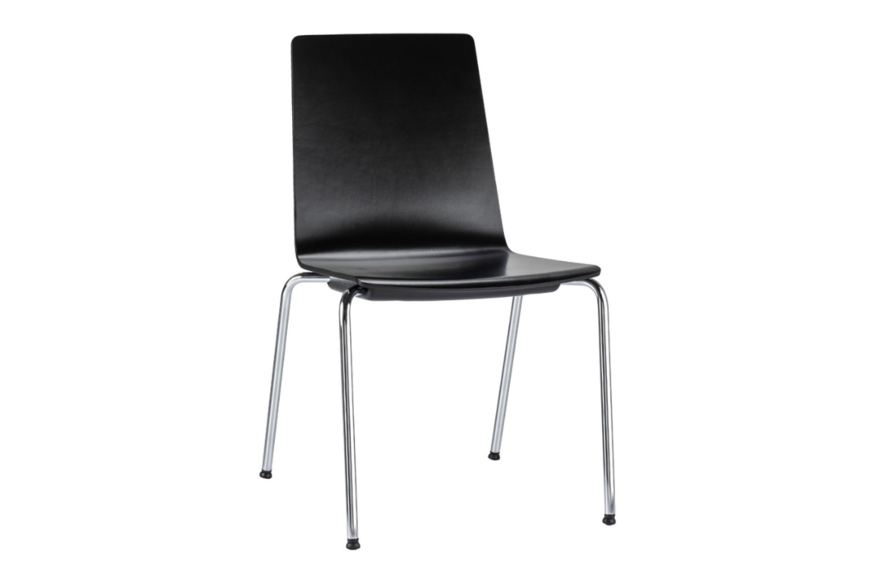

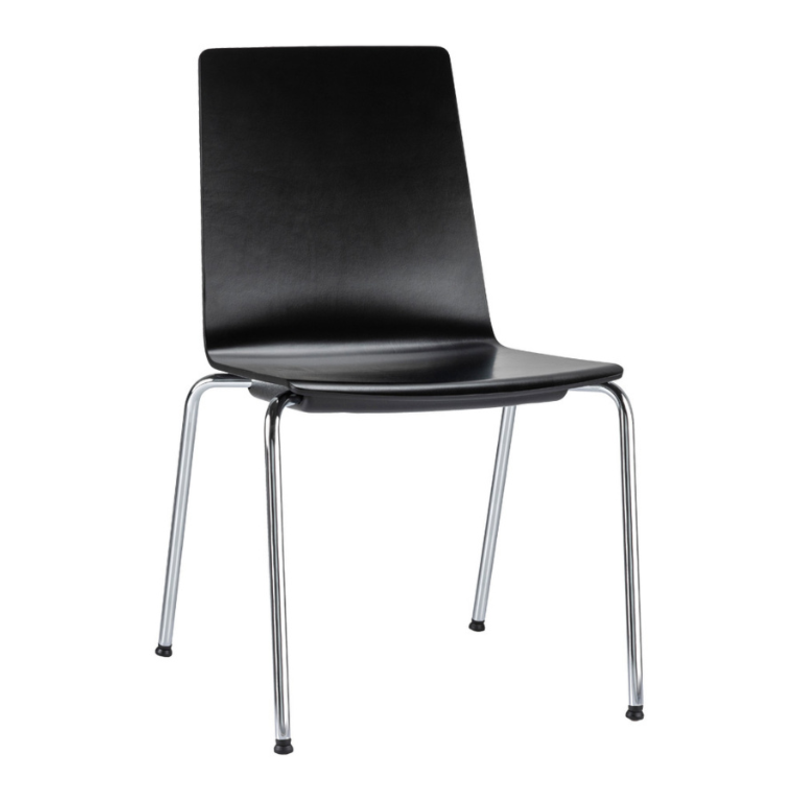

Design-wise reduced to the essentials and still rich in possibilities, AXIO is an archetypal multifunctional chair in a timeless design. The ergonomic moulded wood shell allows different upholstery options and ensures comfortable sitting for many hours. Elegant wooden armrests or armrest with upholstered cover in fabric or leather extend the range of variations and fulfi l many wishes. Its comfort and high-quality appearance make AXIO a good choice in many fields of application.
Downloads
- AXIO Productinformation
(3 MB) - 1380.dwg
(2 MB) - 1380-001.dwg
(3 MB) - 1381.dwg
(3 MB) - 1385.dwg
(2 MB) - 1385-001.dwg
(3 MB) - 1385-004.dwg
(3 MB) - 1386.dwg
(3 MB)
Frame

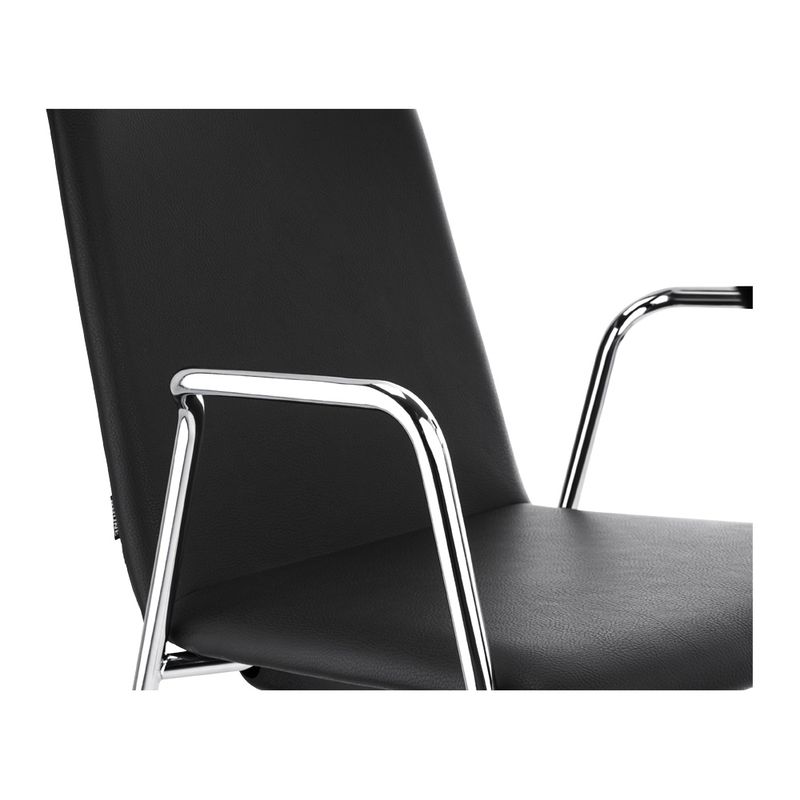

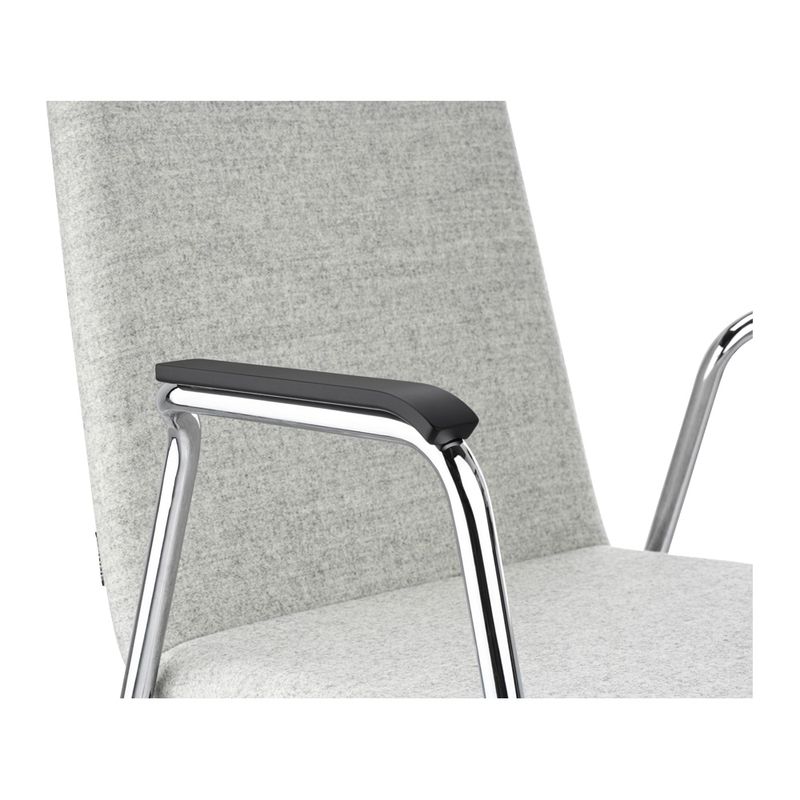

4-legged base, optionally with armrests, made of precision steel tube ZSTE 420, 20 x 2 mm. Armrests optionally upholstered or with wooden armrest.
Frame surfaces
Standard version of the frame: chrome-plated, optionally powder-coated according to the BRUNE ® collection.
Seat shell

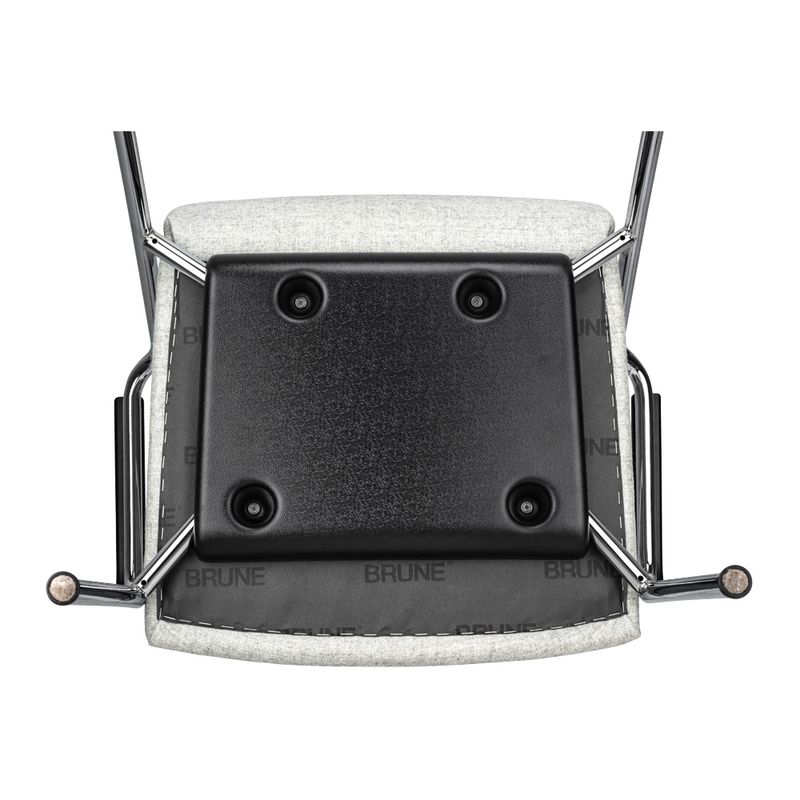

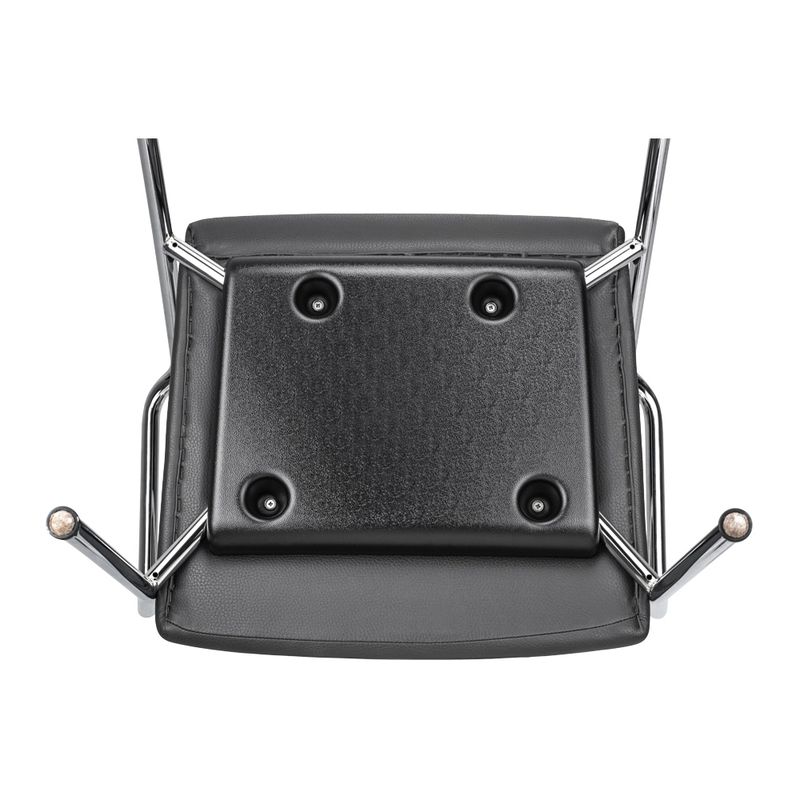

Ergonomically shaped one-piece shell made of moulded beech wood, 10 mm thick, glued several times. The back tapers slightly towards the top. The shell is invisibly fixed to the base frame by means of M6 threaded sleeves.
Wooden surfaces
Wooden parts natural lacquered beech as standard (optionally matt) with low-solvent water-based lacquer, optionally stained according to BRUNE collection.
Upholstery – seat shell with seat padding
| Seat cushion foam: | SG/CH 35/50 | ca. 20 mm thick |
SG = specific gravity CH = compression hardness
Upholstery – seat shell with front side padding
| Seat cushion foam: | SG/CH 35/50 | ca. 20 mm thick | ||
| Back cushion foam: | SG/CH 35/50 | ca. 15 mm thick |
SG = specific gravity CH = compression hardness

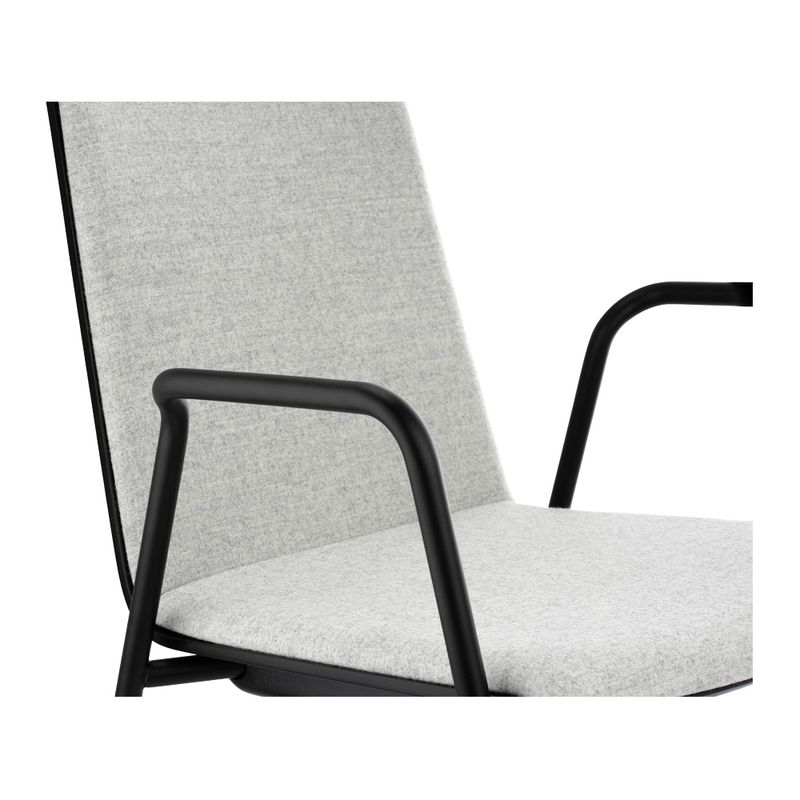

Upholstery – seat shell fully upholstered
| Seat cushion foam: | SG/CH 35/50 | ca. 25 mm thick | ||
| Back cushion foam (front): | SG/CH 35/50 | ca. 20 mm thick | ||
| Back cushion foam (back): | SG/CH 35/50 | ca. 5 mm thick |
SG = specific gravity CH = compression hardness
Gliders
| Standard version: | plastic gliders | |
| Optionally: | felt gliders | |
| Optionally: | metal gliders |

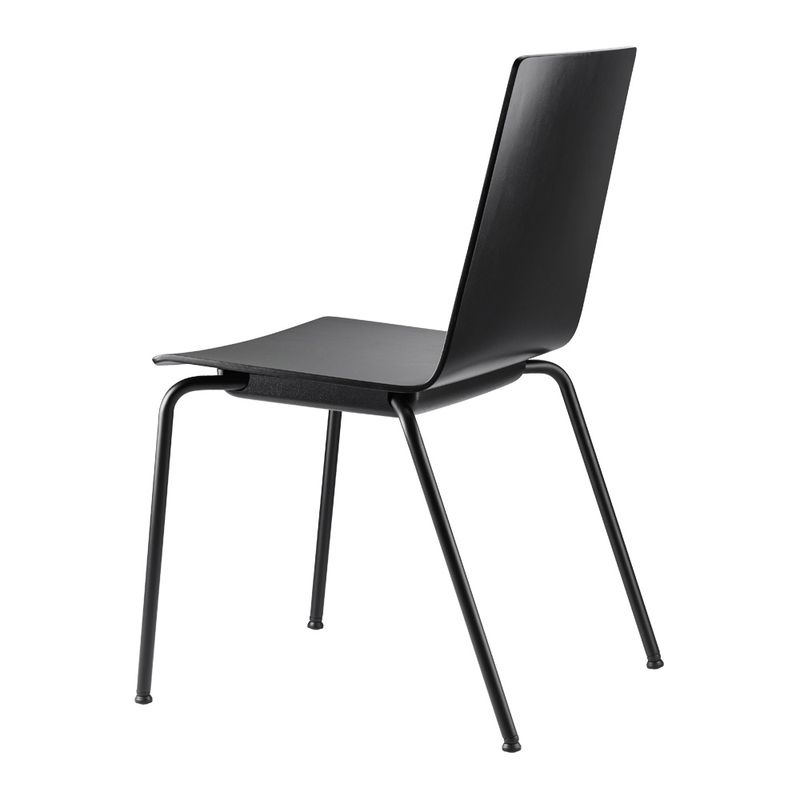

Dimensions | 1380 without armrests
| Dimensions: | B | 51 cm | ||
| T | 59 cm | |||
| H | 86 cm | |||
| SH | 45 cm | |||
| Weights: | 6,5 kg | |||
| 7,0 kg (seat padding) | ||||
| 8,0 kg (front side padding) | ||||
| 7,0 kg (fully upholstered) |

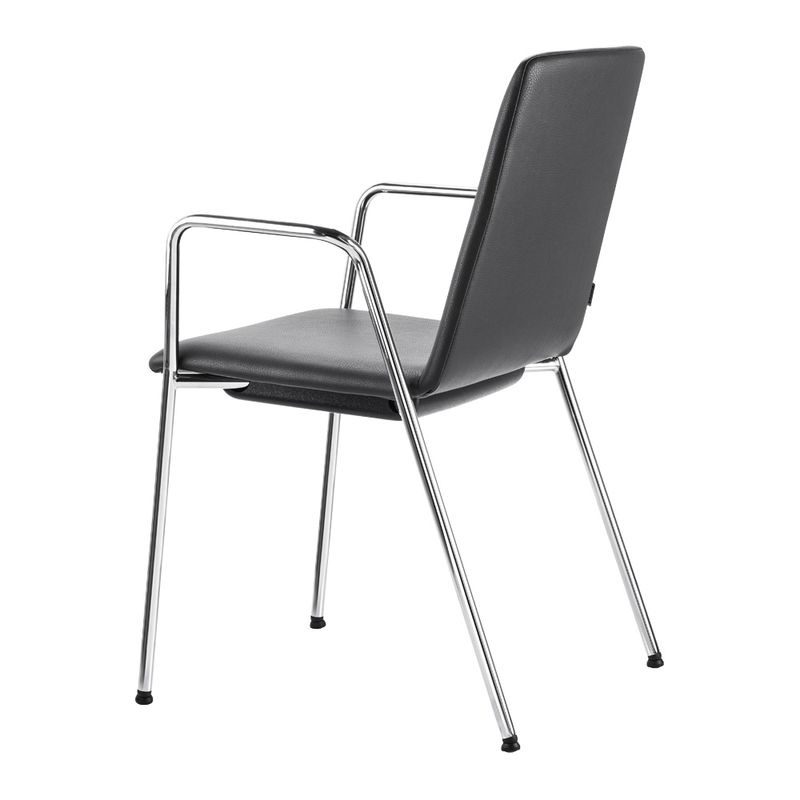

Dimensions | 1385 with armrests
| Dimensions: | B | 56 cm | ||
| B | 58 cm (with wooden armrests) | |||
| T | 59 cm | |||
| AH | 66 cm | |||
| AH | 67 cm (with wooden armrests) | |||
| H | 86 cm | |||
| SH | 458 cm | |||
| Weights: | 7,5 kg | |||
| 8,0 kg (seat padding) | ||||
| 9,0 kg (front side padding) | ||||
| 8,0 kg (fully upholstered) |
Stackability
Stackability requires standard stacking protection.
With upholstered armrests or wooden armrests, stackability is limited.
| Stacking type: | front stapling, stackable | 6 chairs | ||
| Length: | 80 cm | |||
| Width: | 52 cm without armrests (1380) | |||
| Width: | 58 cm with armrests (1385) | |||
| Height: | 120 cm |
Accessories
| Chair trolley: | Model 1995 for the transport of stacked chairs |
Ivo Schelle & Jonas Kressel
The industrial designers Jonas Kressel (1961) and Ivo Schelle (1962) met during their MA Industrial Design studies in Kiel. In 1992 they founded the design studio kressel + schelle design in their hometown of Hamburg. Since then, they have been working successfully with leading international furniture and lighting manufacturers. For Jonas Kressel and Ivo Schelle, the focus in the search for new product solutions is on functionality and detail: "We search for the solution in the detail". kressel + schelle design has been awarded with nearly all major German design prizes.
