Tables

4095

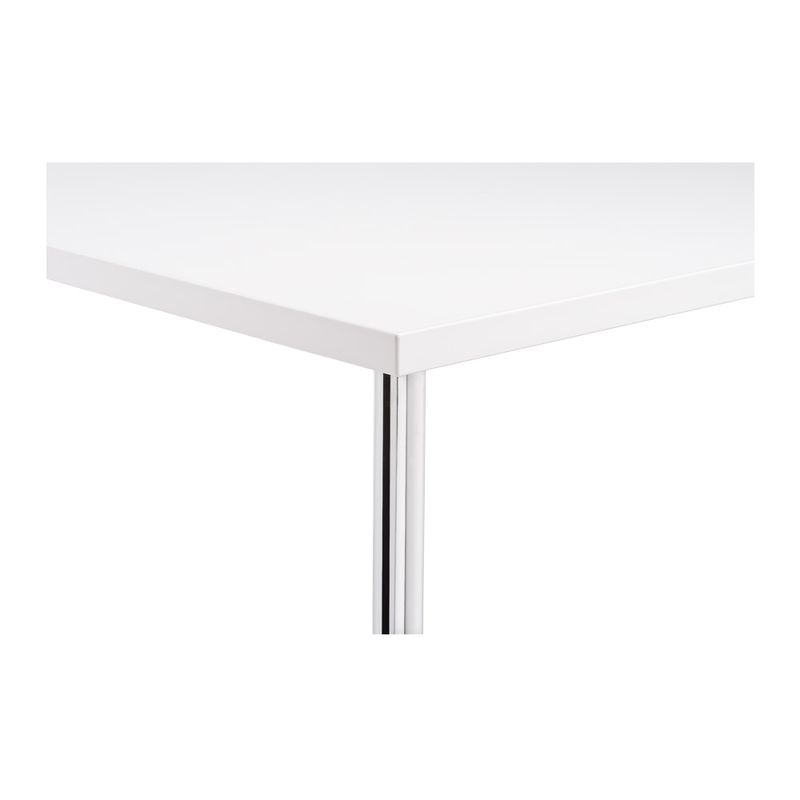

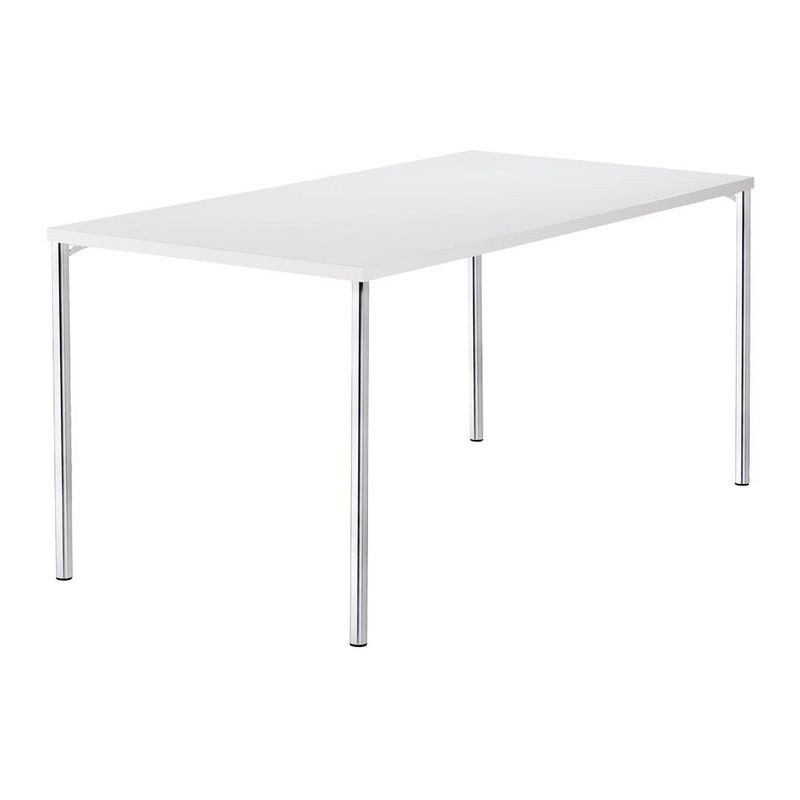

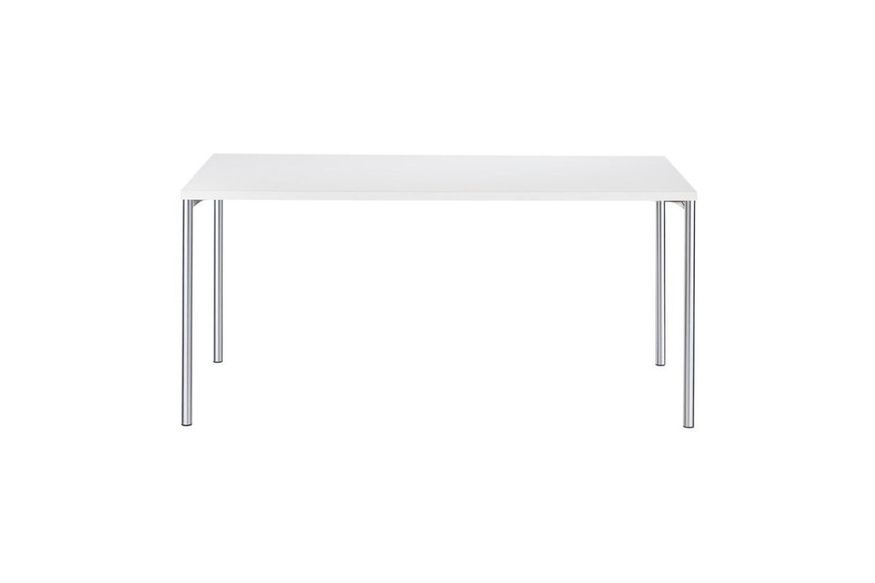

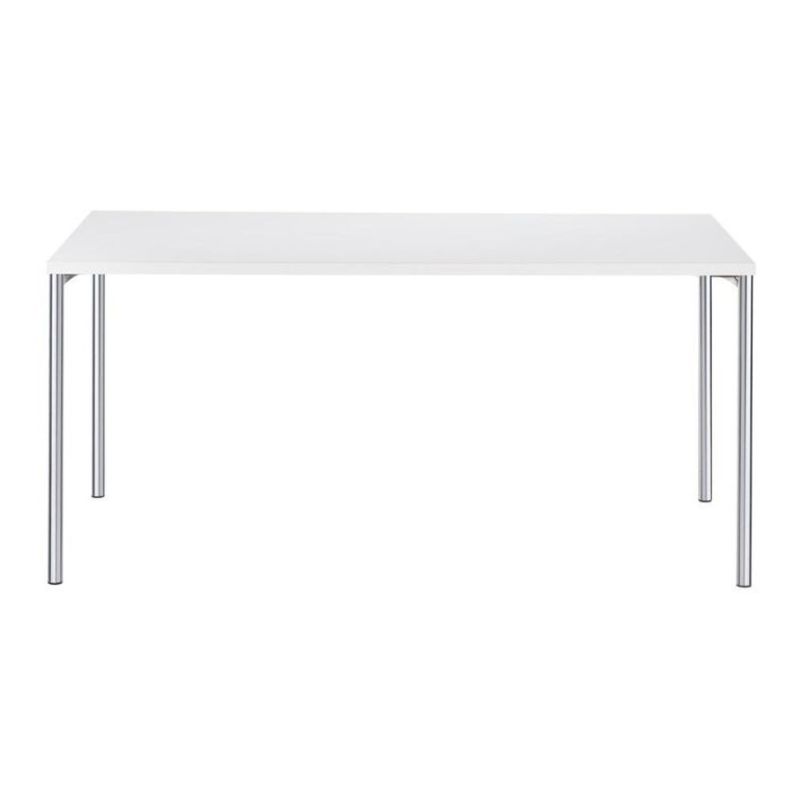

The tables from the 4095 series are characterized by a stark and austere design with a vocabulary that has been stripped down to the bare essentials. The angle of the feet – which is slightly extending outwards – and the elimination of all additional ribs, straps and hoizontal support elements from the construction ensure a maximum of legroom and freedom of movement.
Downloads
- 4095 Productinformation
(262 KB) - 4095_70x70.dwg
(229 KB) - 4095_80x80.dwg
(230 KB) - 4095_120x70.dwg
(229 KB) - 4095_120x80.dwg
(230 KB) - 4095_140x70.dwg
(229 KB) - 4095_140x80.dwg
(230 KB) - 4095_160x70.dwg
(230 KB) - 4095_160x80.dwg
(230 KB) - 4096_140x70x61.dwg
(387 KB) - 4096_160x80x69.dwg
(220 KB) - 4097_Halbkreis_140.dwg
(211 KB) - 4097_Halbkreis_160.dwg
(211 KB) - 4098_DM100.dwg
(206 KB) - 4098_DM120.dwg
(206 KB)
Frame
4-foot frame without connecting elements. Wheelchair access. Frame made from Ø 35 x 2 mm tubular steel, welded together with 5 mm thick transversal plates, table top fastened with pan head screws.
Frame surfaces
Standard version: chrome-plated, optionally powder-coated according to the BRUNE ® collection.
Table tops
Plate C: 30 mm thick, high-quality multi-layer plywood plate E1, top surface optionally covered with HPL plastic or wood veneer according to the BRUNE ® collection. Lower surface white HPL or beech veneer. Straight edge, 2 mm thick, in material to match table top (plastic for plastic, veneer for veneer).
Plate D: 30 mm thick, 28 mm thick high-quality multi-layer plywood plate E1, top surface optionally covered with HPL plastic or wood veneer according to the BRUNE® collection. Lower surface white HPL or beech veneer. Edge with solid beechwood edge band, smooth finish, 9 mm thick.
Plate E: 30 mm thick, 28 mm high-quality multi-layer plywood board E1, coated in high-pressure laminate (HPL) or veneer according to the BRUNE® collection. Lower surface: white HPL or beech veneer.
Edge: solid beech edge band, crowned, 9 mm thick.
Veneer finish
Real wood veneer from the BRUNE ® collection comes as a standard varnished with a low solvent content water-based lacquer, optionally stained to the BRUNE® collection.
HPL surfaces
Resopal®-HPL from the BRUNE® collection.
Gliders
Standard version: | Plastic gliders |
Optionally: | Plastic gliders with height adjustment screws |
Dimensions
Table Height: | 75 cm | (+ 5 mm with height adjustment screws) Table legs can be shortened on request (for an additional fee). | ||
Weights: | ||||
70x70 17,5 kg 80x80 20,5 kg | trapez 140x70x61 20,5 kg
semi circle Ø140 23 kg
round table Ø100 15,5 kg |
