Tables

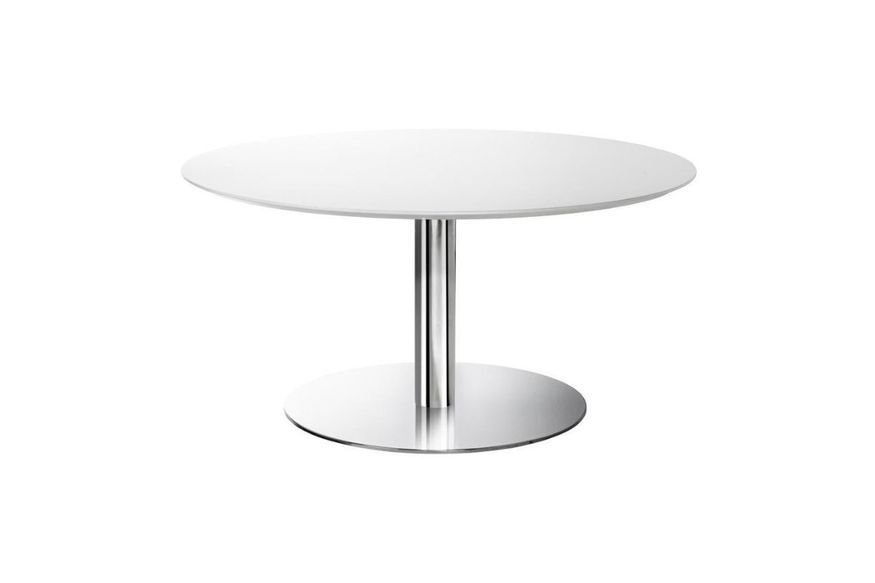

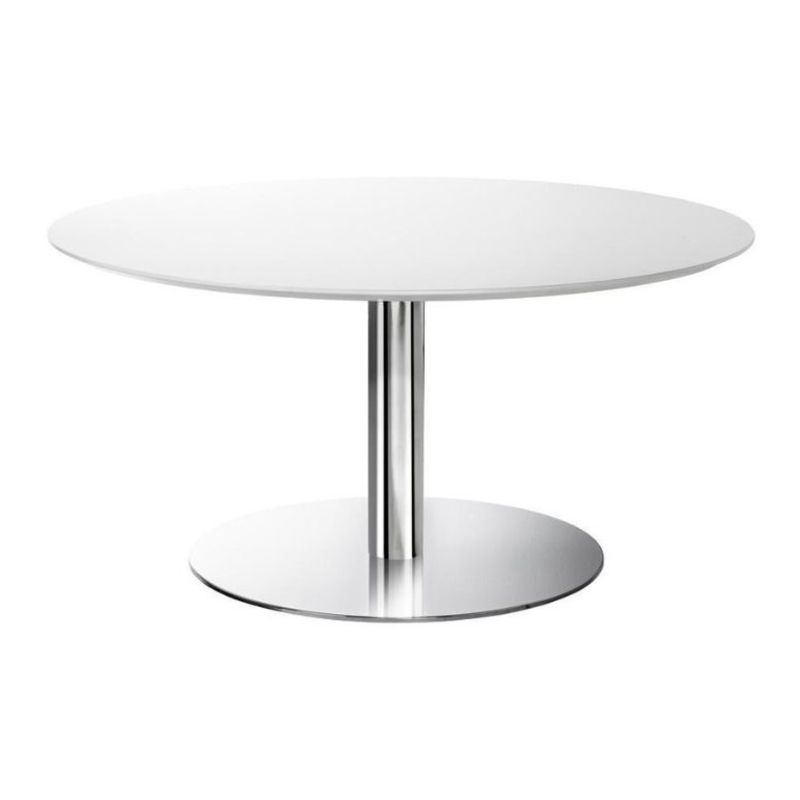

4345 ORBIT
ORBIT – timeless, elegant and functional. This classical round column table from the BRUNE® collection combines attractive design with functionality. The light-yet-robust construction of the ORBIT ensures that the table stands firmly on the ground and guarantees a maximum of legroom. With its chrome-plated, high-gloss finish (standard version), the ORBIT discreetly complements just about any – even the most distinguished – environment: a true design classic for many different settings and circumstances.
Downloads
- 4345_ORBIT_Productinformation
(186 KB) - 4345_DM130.dwg
(206 KB) - DWG_4345_DM110.dwg
(206 KB) - DWG_4345_DM150.dwg
(206 KB)
Frame
Frame made from a circular steel blank, Ø 905 x 8 mm, powder-coated in black, with 5 adjustable plastic gliders, Ø 40 mm, smooth chrome-plated foot plate with high-gloss finish Ø 910 mm, chrome-plated column with high-gloss finish Ø 120 x 2 mm and a mounting plate 690 x 8 mm, powder-coated in aluminium colour. Mounting plates Ø 750 mm with real wood veneer are optionally available for tables with veneered surfaces.
Frame surfaces
Chrome-plated with a high-gloss finish as standard, optionally powder-coated according to the BRUNE® collection.
Table tops
Table top C: 30 mm thick, multi-layer particle board E1, coated in high-pressure laminate (HPL) or veneer according to BRUNE ® collection. Lower surface: HPL white or beech veneer. Straight edges, 2 mm thick, in material to match table top (plastic for plastic, veneer for veneer).
Table top E: 30 mm thick, 28 mm thick multi-layer particle board E1, coated in high- pressure laminate (HPL) or veneer according to BRUNE® collection. Lower surface: HPL white or beech veneer. Edge: solid beech edge band, crowned, 9 mm strong.
Table top O: 30 mm thick, 28 mm thick multi-layer particle board E1, optionally coated in high-pressure laminate (HPL) according to BRUNE ® collection. Lower surface: HPL white, with a crowned, black hollow chamber plastic edge, 19 mm strong to withstand extremely high impact loads.
Table top R: 30 mm thick, 28 mm strong multi-layered plywood, surface coated in high-pressure laminate (HPL) or veneer according to BRUNE ® collection. Lower surface: HPL white or beech veneer. Edges multi-layered plywood, straight edges, 9 mm thick, beveled over 35 mm.
Veneer finish
Real wood veneer from the BRUNE ® collection comes as a standard varnished with a low solvent content water-based lacquer, optionally stained to the BRUNE® collection.
HPL surfaces
Resopal®-HPL from the BRUNE® collection.
Gliders
Plastic gliders for height adjustment.
Dimensions and weights
Table height: | 75 cm | |
Diameter Ø: | min. 95 cm max. 150 cm | |
Weights: |
Weight of table | |
Ø 110 cm | 95 kg |
Ø 130 cm | 102 kg |
Ø 150 cm | 111 kg |
