PURA
Stacking chair
Sensuous design, high quality material and best workmanship make the PURA a guarantor of modern sitting. PURA adapts discreetly to its surroundings and endows each room with that certain something.
Downloads
- PURA_Productinformation
(268 KB) - 1270.dwg
(2 MB) - 1270-001.dwg
(2 MB) - 1270-003.dwg
(2 MB) - 1270-004.dwg
(2 MB) - 1270-CPL.dwg
(2 MB) - 1270-CPL-001.dwg
(2 MB) - 1270-CPL-003.dwg
(2 MB) - 1270-CPL-004.dwg
(2 MB) - 1271.dwg
(2 MB) - 1275.dwg
(2 MB) - 1275-001.dwg
(2 MB) - 1275-003.dwg
(2 MB) - 1275-004.dwg
(2 MB) - 1275-CPL.dwg
(2 MB) - 1275-CPL-001.dwg
(2 MB) - 1275-CPL-003.dwg
(2 MB) - 1275-CPL-004.dwg
(2 MB) - 1276.dwg
(2 MB) - 1280.dwg
(2 MB) - 1280-001.dwg
(2 MB) - 1280-CPL.dwg
(2 MB) - 1280-CPL-001.dwg
(2 MB) - 1281.dwg
(2 MB)
Frame

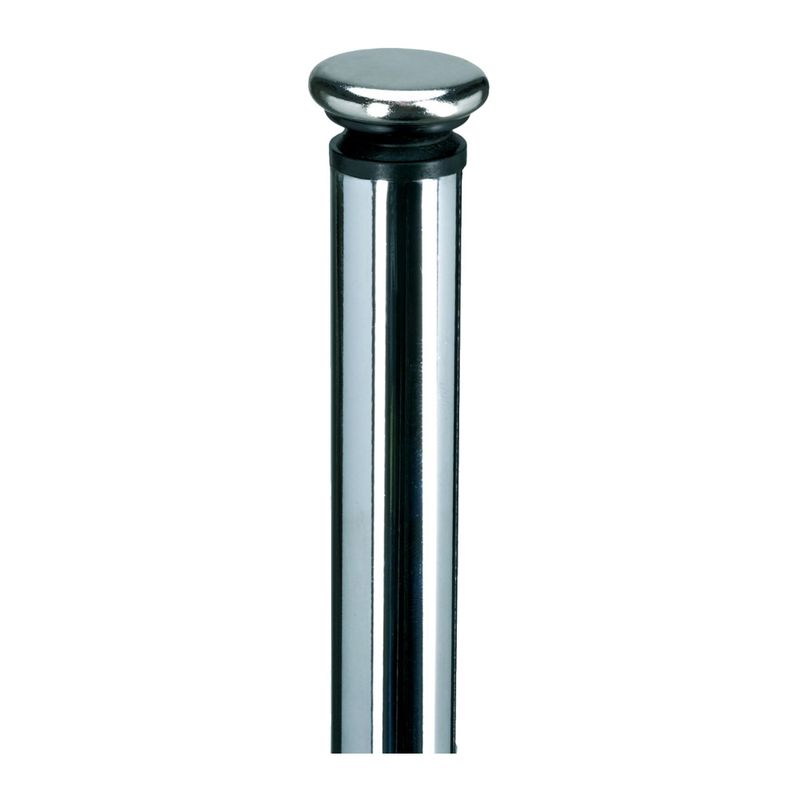

4-foot frame from tubular steel, rear feet tube Ø: 20 x 2 mm, soldered (mitered) to the rear horizontal frame with the same diameter. Front feet, tube Ø 16 x 2 mm, soldered (mitered) to the front horizontal frame with the same diameter. The curved longitudinal frames on either side (Ø 16 x 2 mm) are soldered to the front and rear frames and have been additionally equipped with welded support plates for the seat shell which is mounted on transparent plastic spacers.
Frame surfaces
Standard version of the frame: chrome-plated, optionally powder-coated according to the BRUNE ® collection.
We wish you to point out that the powder-coated of the foot support can be damage by utilization, these are excluded from any warranty.

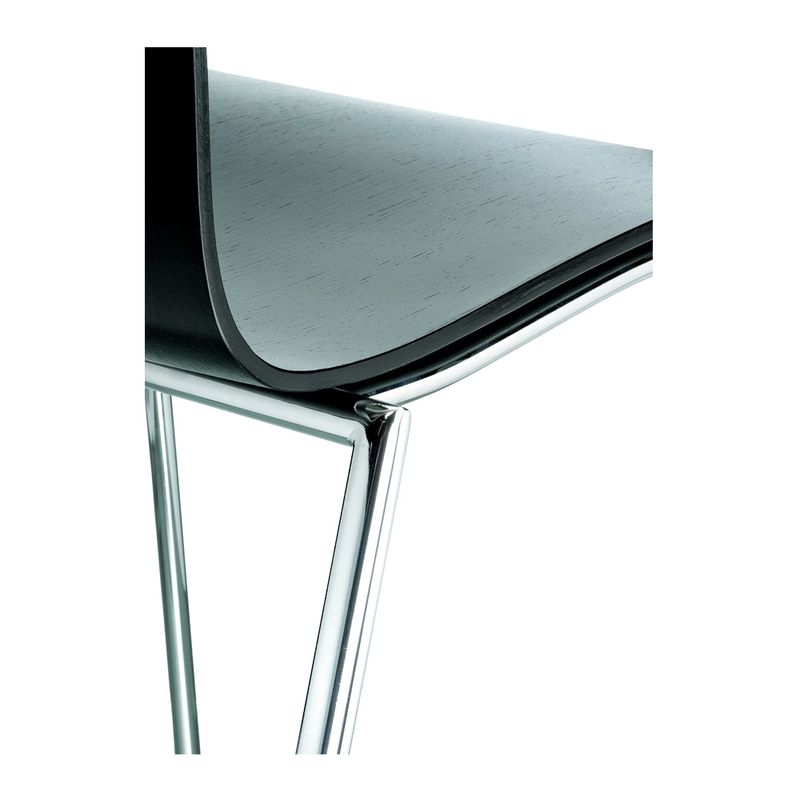

Seat shell

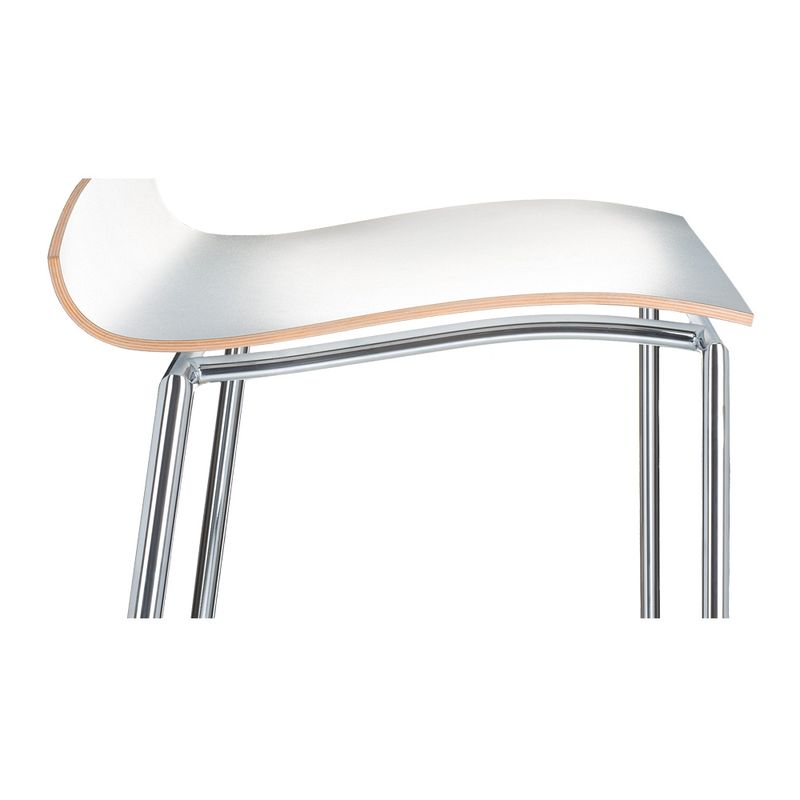

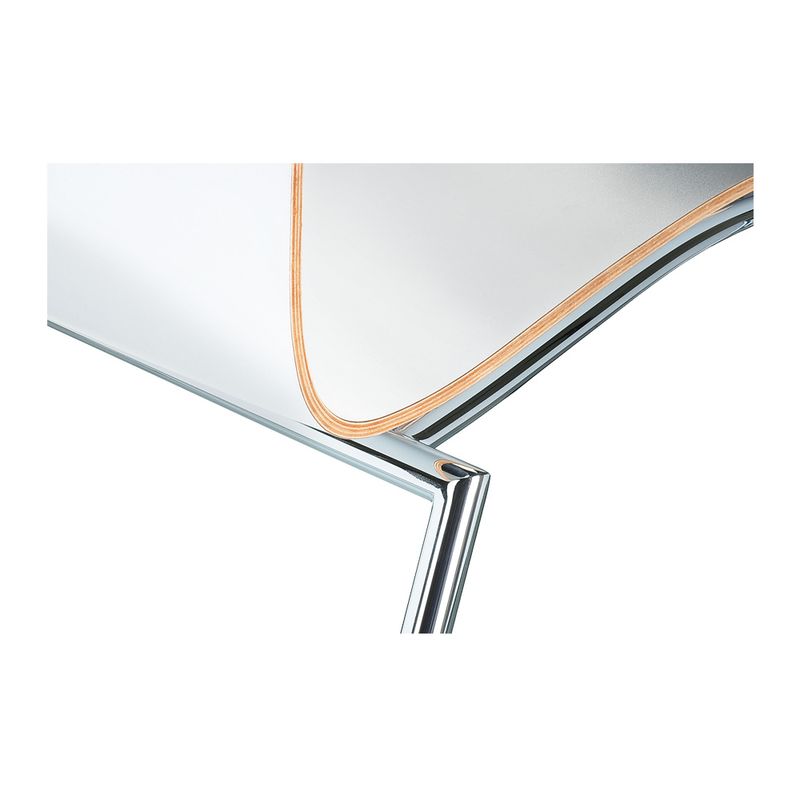

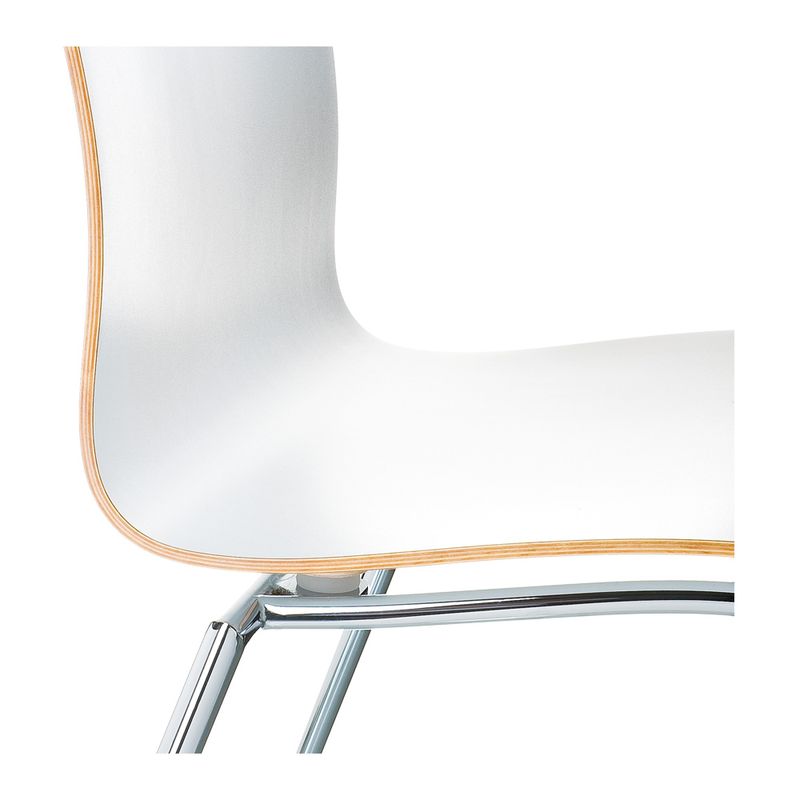

Three-dimensionally shaped plywood shell, 7 mm thick, attached with several layers of glue, fastened at the lower surface with embedded round wooden claddings and M5 threaded inserts. In the area of the seat, the shell follows the radius of the lower frame, creating a flowing line. The outline of the back support echoes the shape of the body, optimizing the seating comfort in the lumbar area. Shell from non-upholstered plywood, optionally with CPL coating. The edges of CPL-coated shells remain free from any coating and are varnished with wax oil.
Wooden surfaces
Wooden elements made from beech wood, with natural varnish (low-solvent water varnish) in the standard version. Optionally stained according to the BRUNE ® collection.

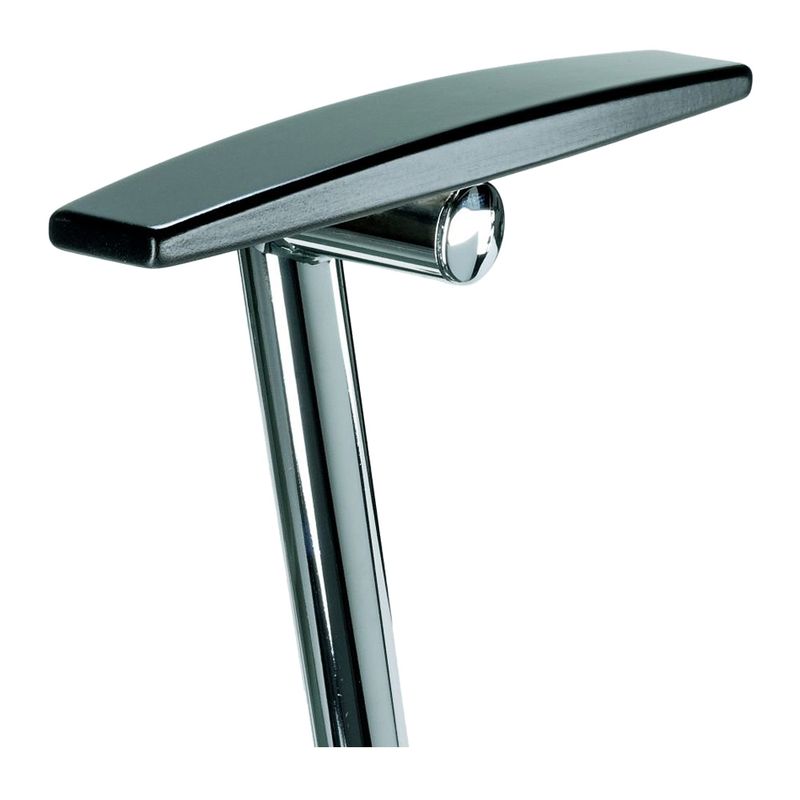

Armrests
Armrests made from milled massive beechwood, glued in place to an oval metal plate.
CPL surface
Standard colour for CPL coating
CPL 01
White
Upholstery

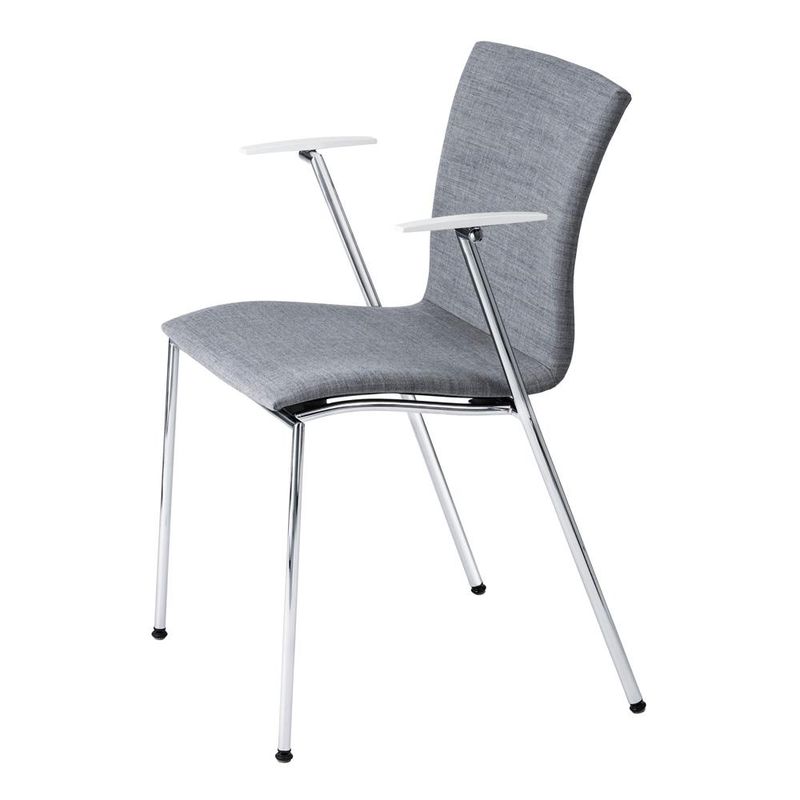

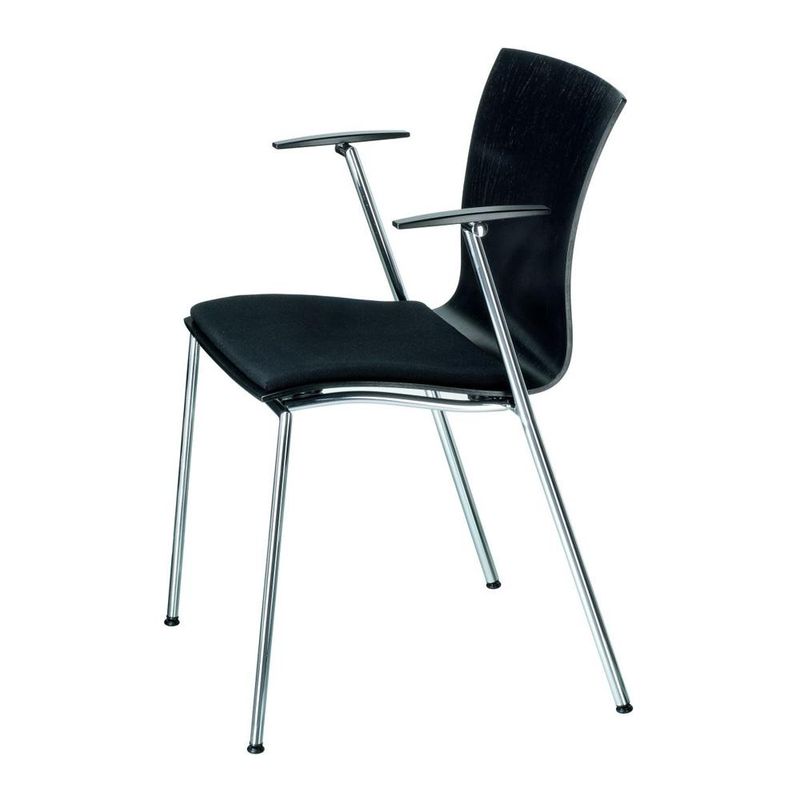

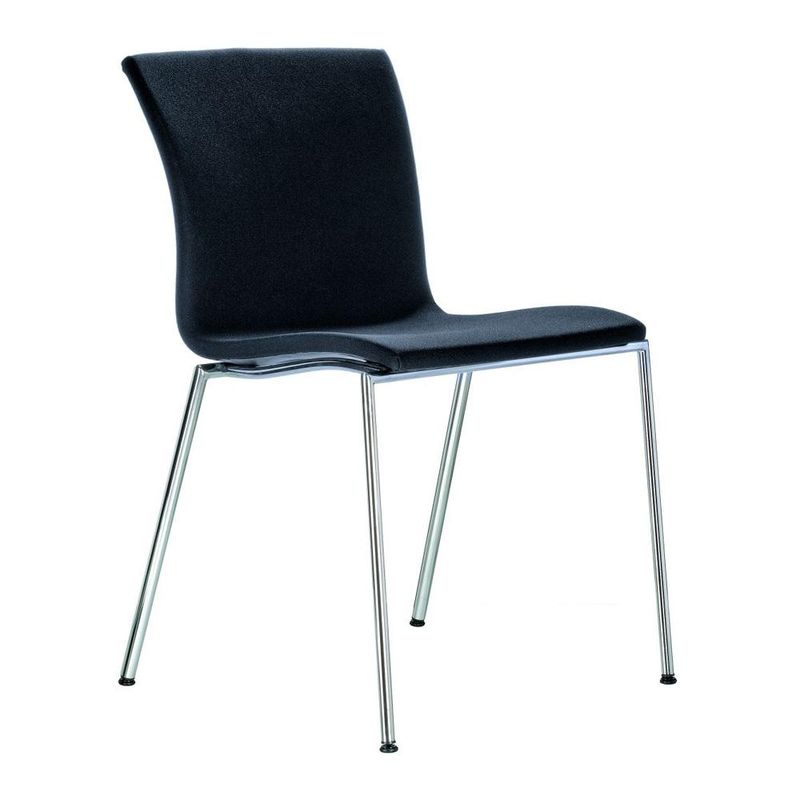

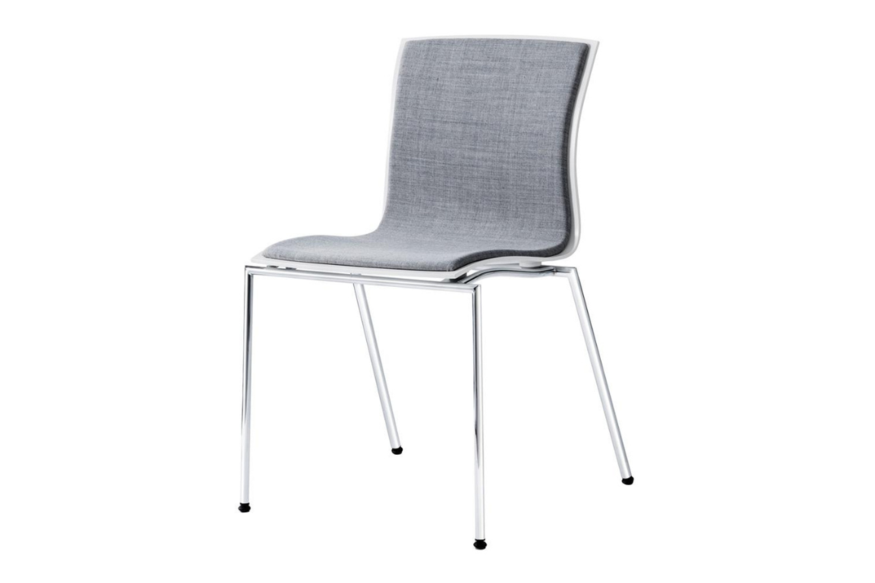

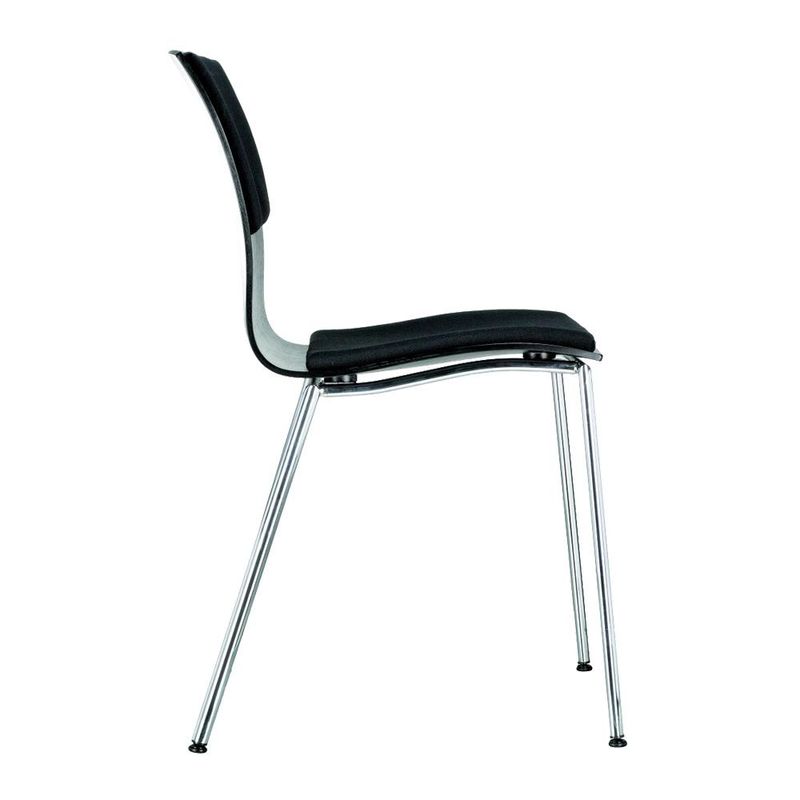

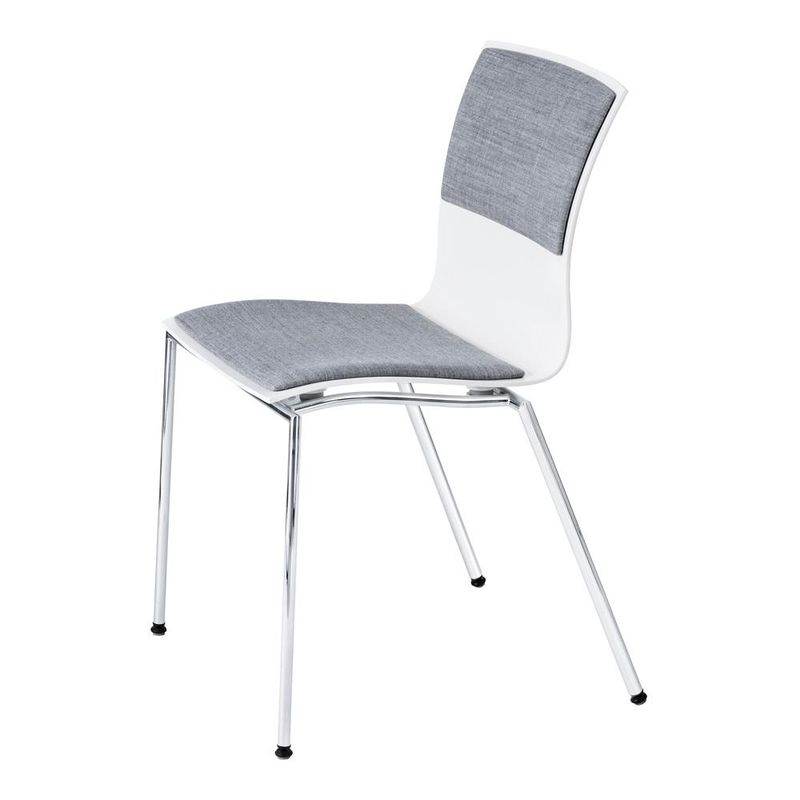

Seats or seats and back supports are optionally available with partial upholstery or fully upholstered seat, fabric cover according to the BRUNE® collection, fabric categories 3, 4, 6, 7 or 8.
| Seat cushion foam: | SG/CH 35/50 | approx. 10 mm thick | ||
| Back cushion foam: | SG/CH 35/50 | approx. 10 mm thick |
SG = specific gravity, weight per m³. CH = compression hardness (e.g.: 50 ≙ approx. 50 g/cm² at a compression level of 40 %)

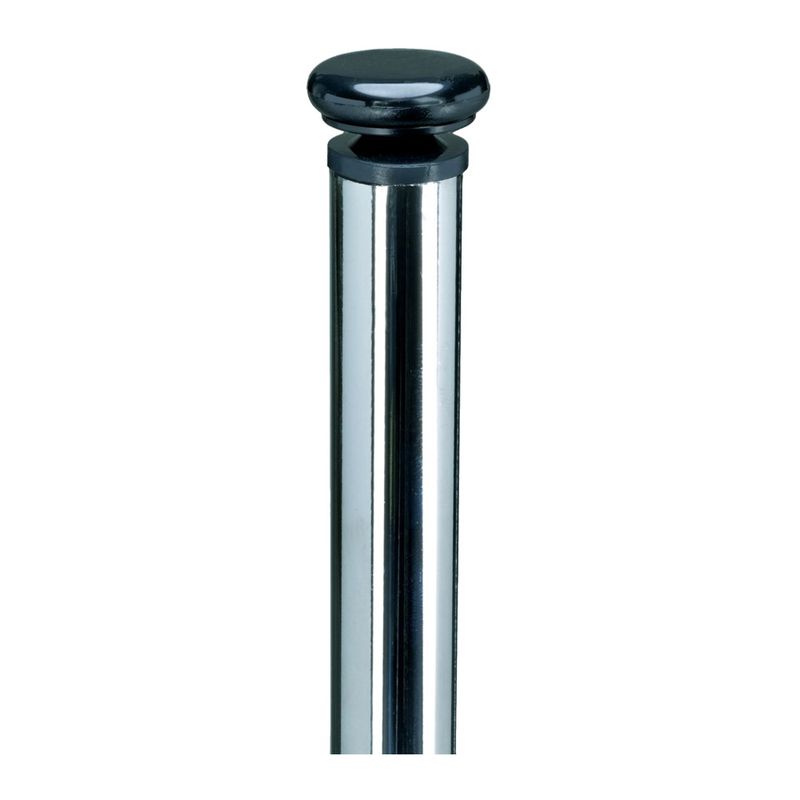

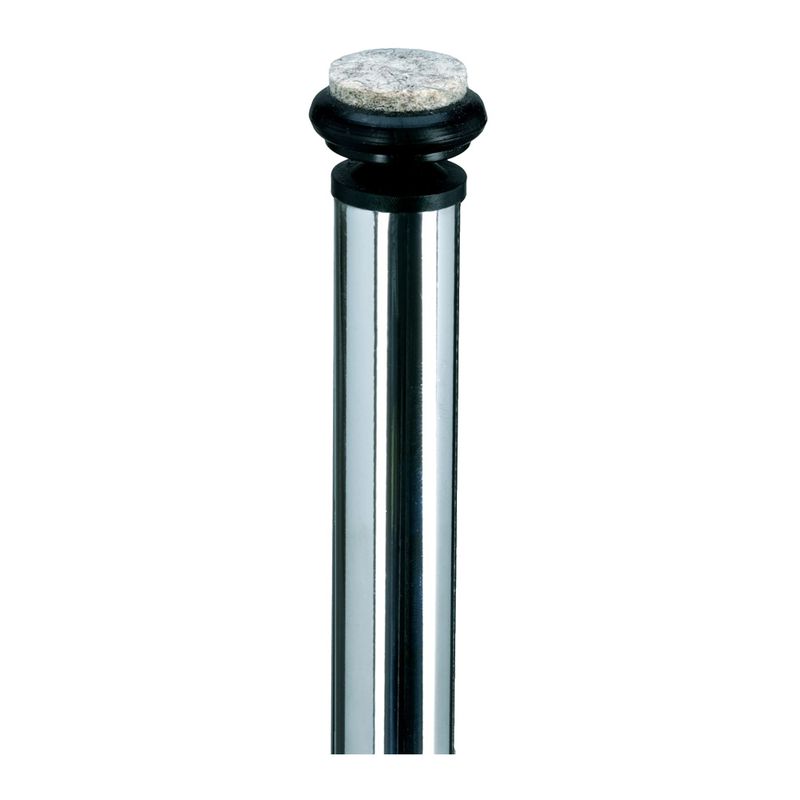

Gliders
| Standard version: | Plastic gliders | |
| Optionally: | Gliders with felt inserts | |
| Gliders with metal caps |

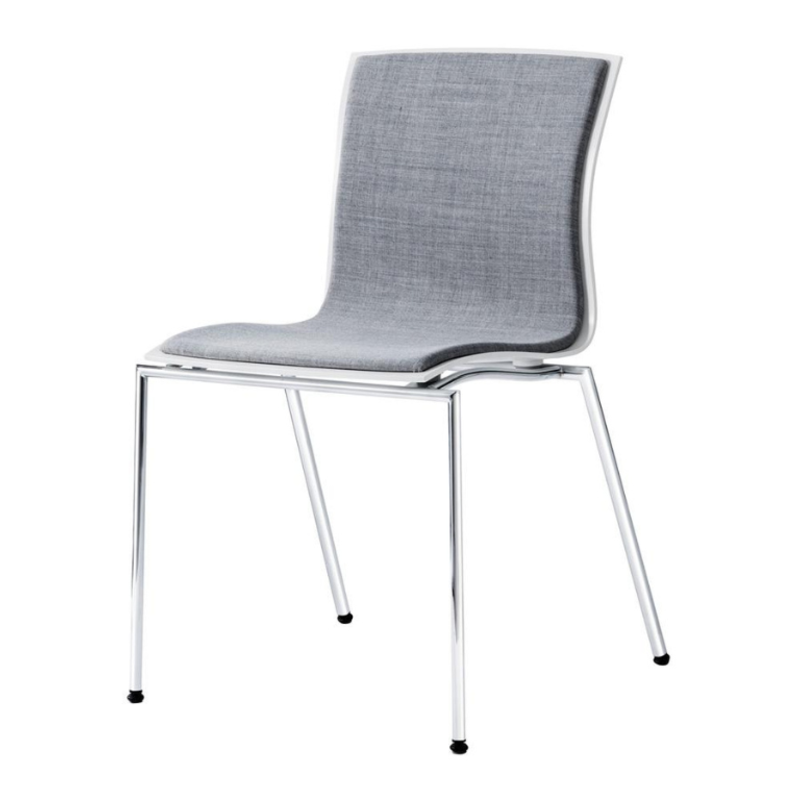

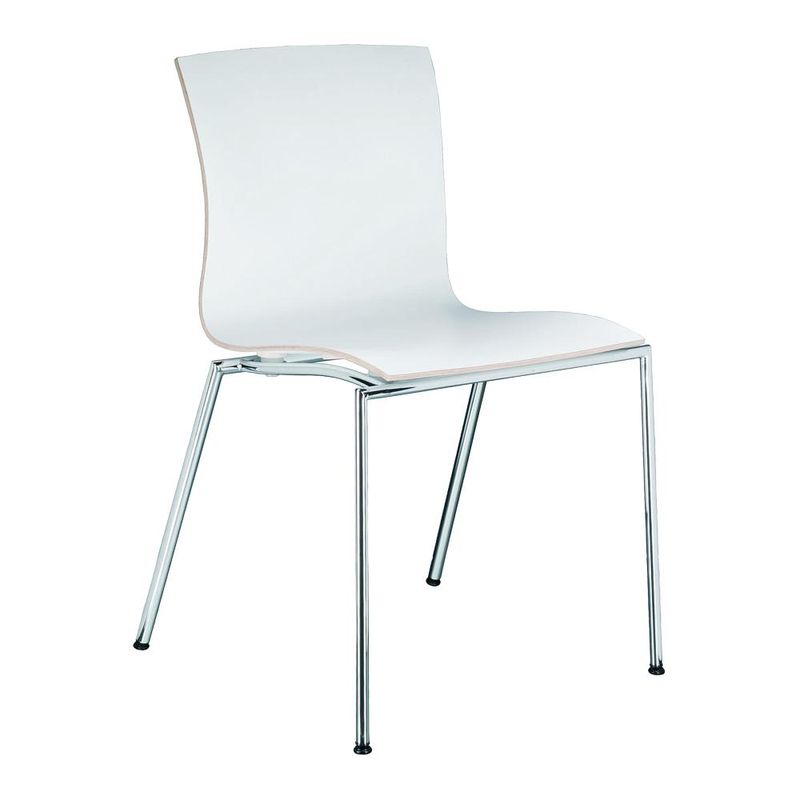

Dimensions | 1270 without armrests
| Dimensions: | B | 55 cm | ||
| T | 52 cm | |||
| H | 83 cm | |||
| SH | 45 cm | |||
| Weights: | 6,0 kg | |||
| 6,8 kg (seat padding) 7,3 kg (seat and back padding) 7,5 kg (front side padding) 7,0 kg (fully upholstered) |

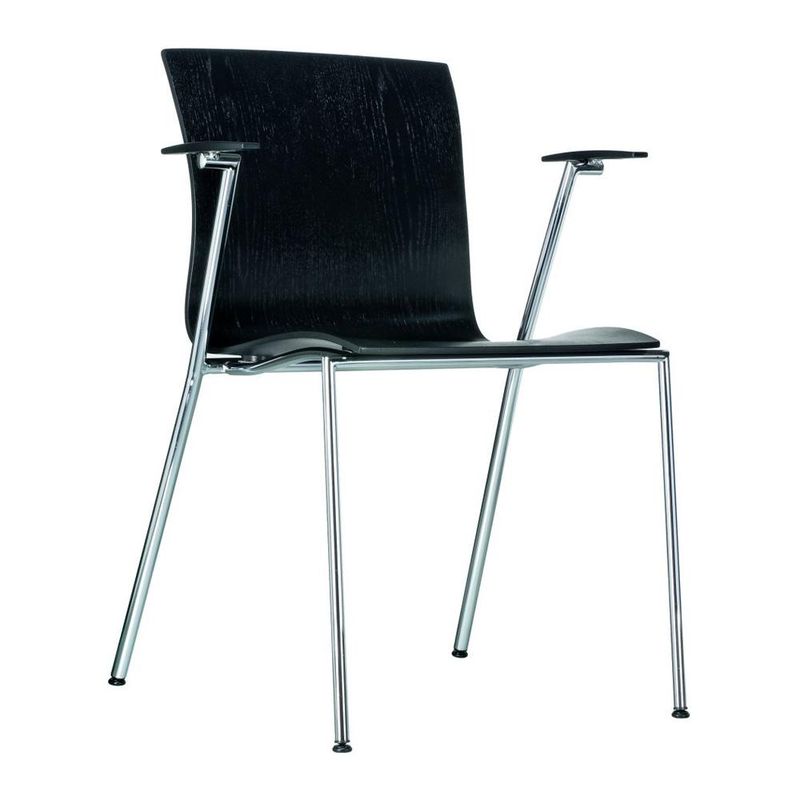

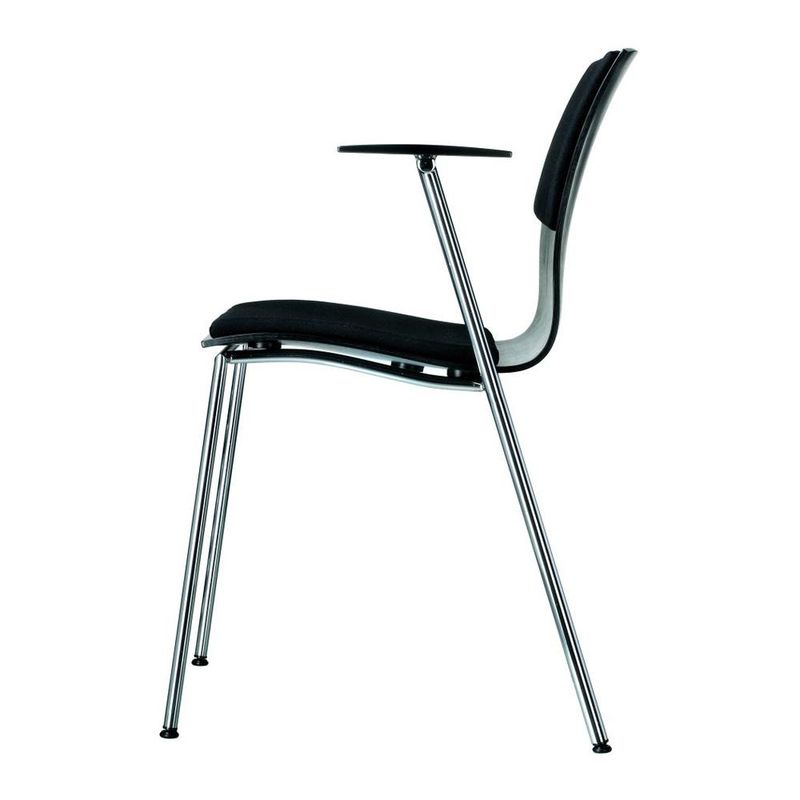

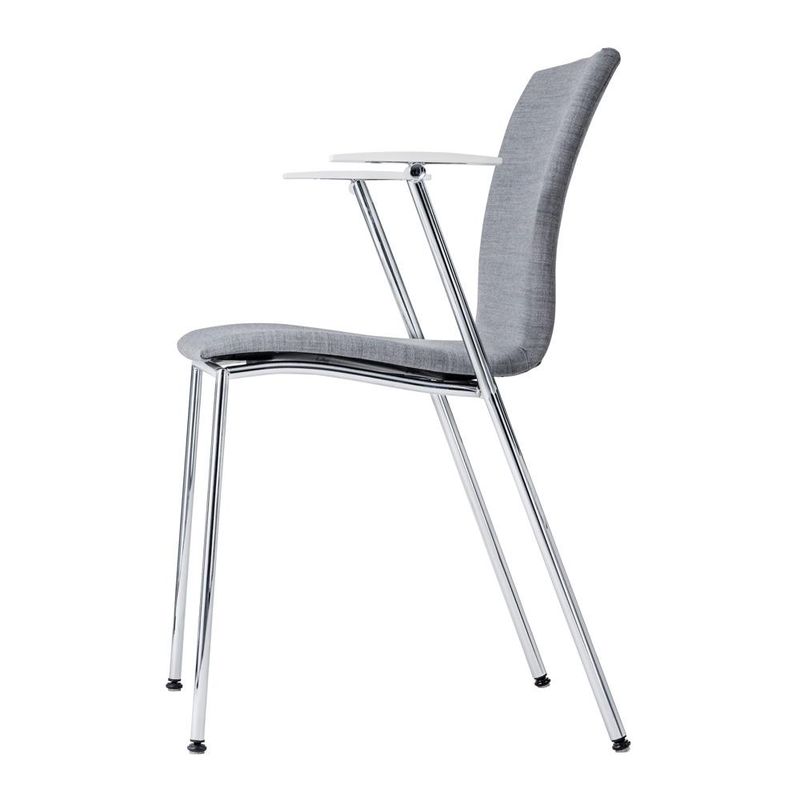

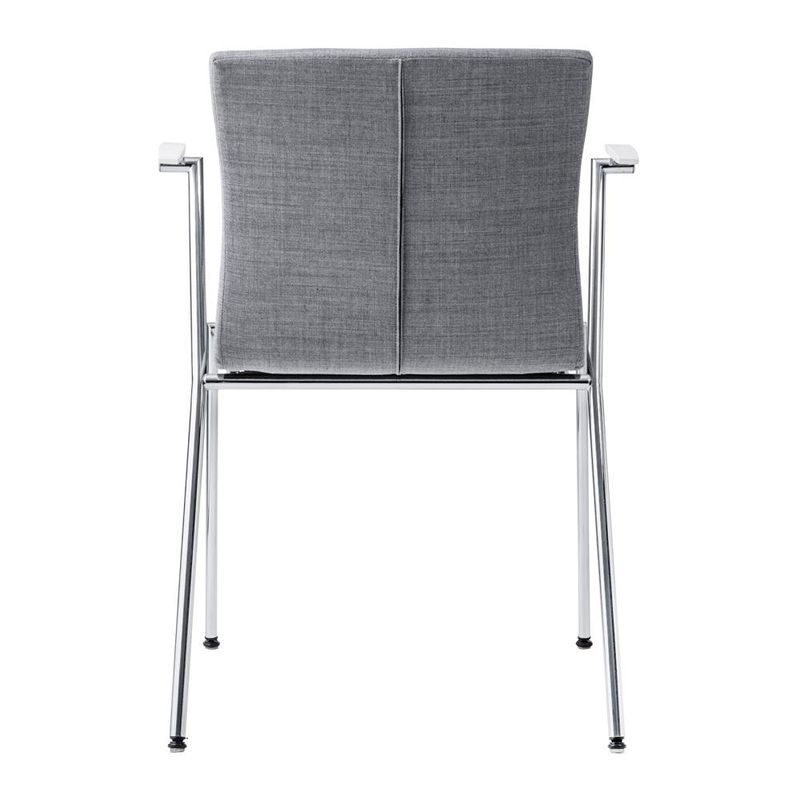

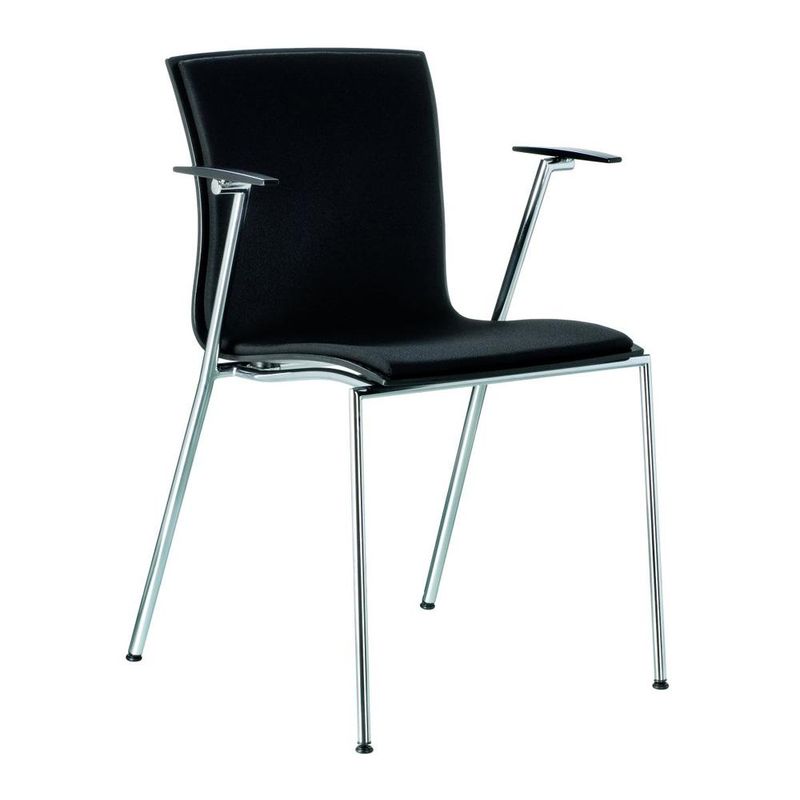

Dimensions | 1275 with armrests
| Dimensions: | B | 57 cm | ||
| T | 53 cm | |||
| AH | 69,5 cm | |||
| H | 83 cm | |||
| SH | 45 cm | |||
| Weights: | 7,0 kg | |||
| 7,8 kg (seat padding) 8,3 kg (seat and back padding) 5,8 kg (front side padding) 8,0 kg (fully upholstered) |

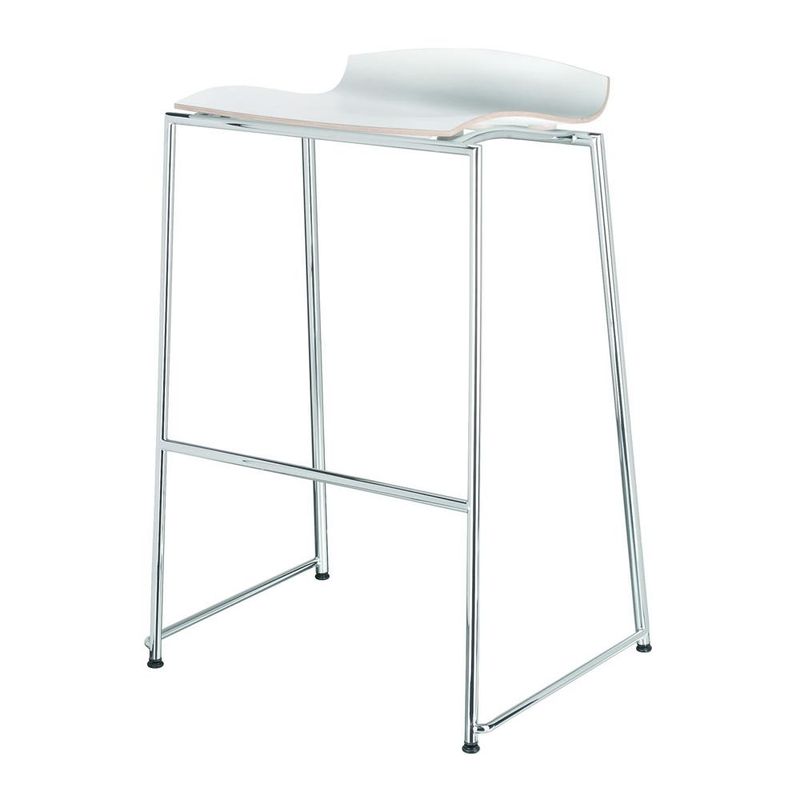

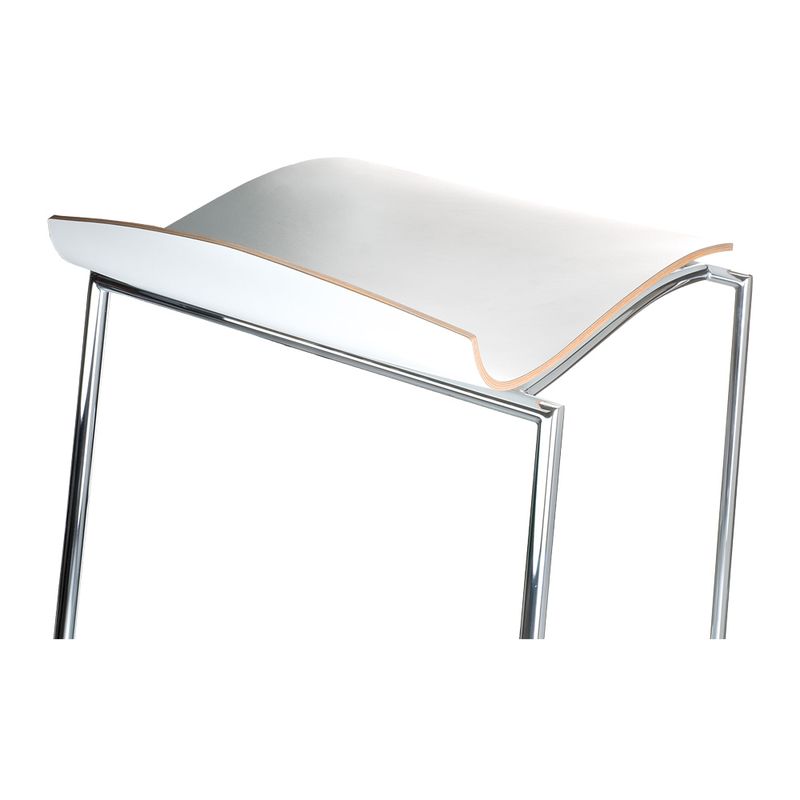

Dimensions | 1280 High Chair
| Dimensions: | B | 56 cm | ||
| T | 46 cm | |||
| H | 86 cm | |||
| SH | 78 cm | |||
| Weights: | 5,5 kg | |||
| 6,0 kg (CPL laminated) 7,0 kg (CPL seat shell with padded seat) 6,5 kg (seat padding) 6,5 kg (fully upholstered) |

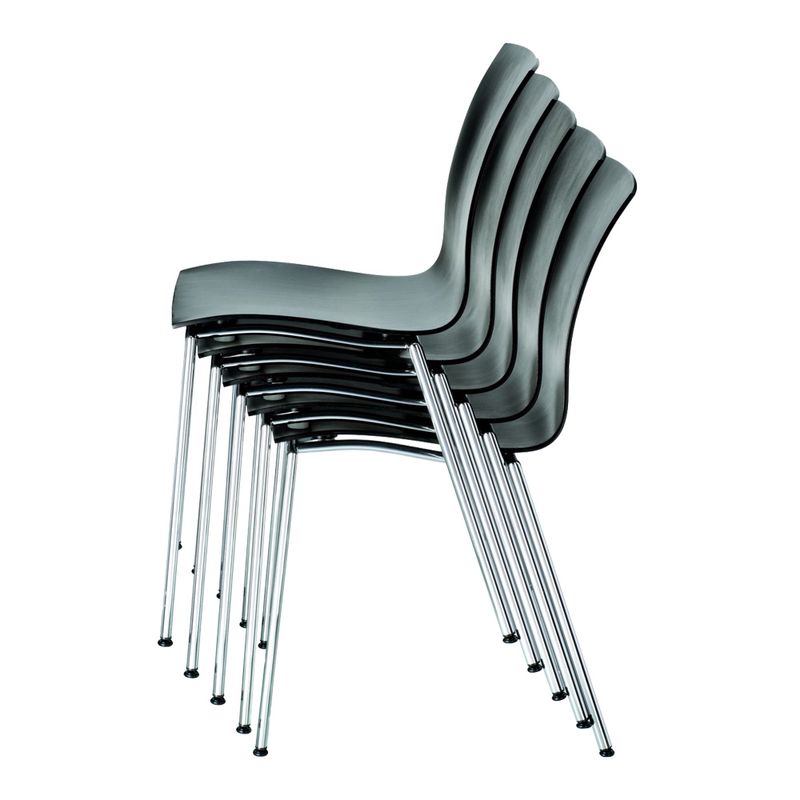

Stackability
| Stacking type: | Front stacking, 5 stackable chairs 10 chairs on inclined chair stacking trolley 1997 | |
| Required floor space: | Length: 70 cm (on stacking trolley 1997: 100 cm) | |
| Width: 52 cm (without arm rests) 55 cm (with arm rests) Height: 100 cm (on stacking trolley 1997: 140 cm) |
Row linking
| Row linking system: | Fold-down / removable plastic connectors with a numbering system for chair-chair | chair-armchair | armchair-armchair* | |
| Optional: | Fold-down hook-and-eye linking system made from 5 mm chrome-plated steel wire (for seat upholstery / full upholstery versions only) |
Accessories
Chair trolley: Inclined chair stacking trolley: | Model 1995 for the transport of stacked chairs Model 1997 for the storage and transport of approx. 10 stacked chairs |
Prof. Matthias Rexforth
Matthias Rexforth (born 1963) studied product design at the University of Kassel and received his diploma in 1994. In 1995, he founded his atelier x_products and since then he has designed furniture for national and international companies. Since 2003, he holds a chair for Interior Design at the FH Aachen. His work for BRUNE were, among others, awarded with the Red Dot Award.
Matthias Rexforth is lives and works in Krefeld.
