Looking for something else than chairs? TYPO offers the solution with bench systems combining esthetics and utility.

ProductinformationDesigner

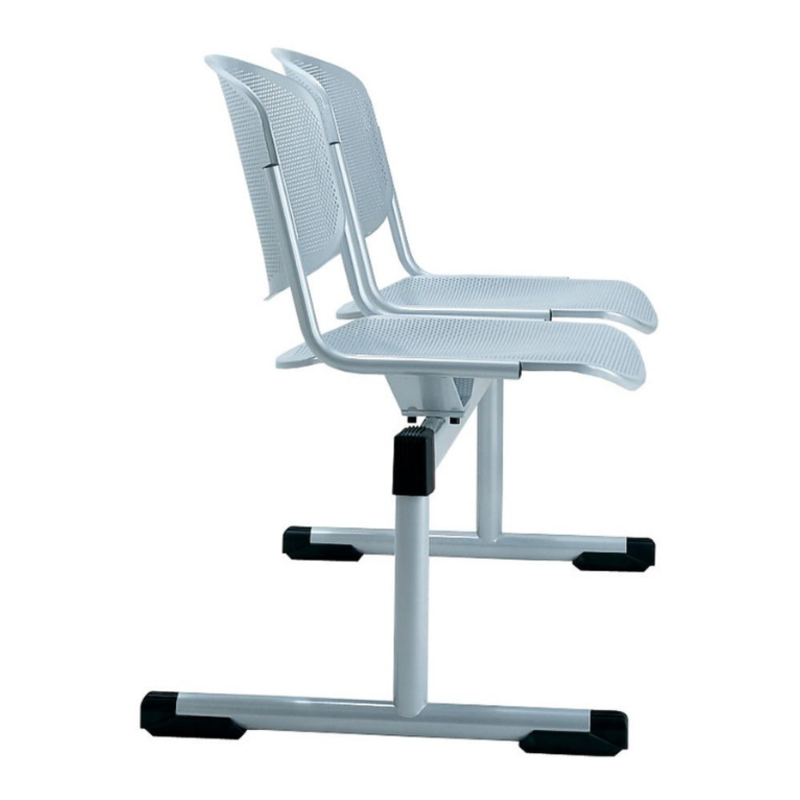

Frame

T-shaped side sections made from Ø 40 x 2 mm tube steels, connected by soldering, welded together with the 60 x 30 x 2 mm oval tube crossbeam. The welded connection has been covered with black plastic caps.

Frame surfaces

Standard version of the side sections, side bars and crossbeam: powder-coated in black, optionally powder-coated according to the BRUNE® collection.

Seat and back support

Ergonomically shaped perforated sheet metal (approx. 2 mm thick). Perforation pattern: 3 mm Ø spaced in distances of 6 mm. The perforated rows are offset diagonally. Seats and back supports are welded to the frame at the side brackets (concealed welding joints). Side brackets made from 22 x 2 mm tubular steel tubes. Seat screwed to the transversal beam with a u-shaped fastening clip.

Upholstery

Seat and back padding for seats in perforated steel, fabric cover according to the BRUNE® collection, fabric categories 3, 4, 6, 7 or 8.

Seat cushion foam:		SG/CH 35/50		approx. 25 mm thick
Back cushion foam:		SG/CH 35/50		approx. 15 mm thick

SG = specific gravity, weight per m³. CH = compression hardness (e.g.: 50 ≙ approx. 50 g/cm² at a compression level of 40 %)

Table top

Table top made from perforated sheet metal, 45 x 45 cm.

Gliders

Standard version:		plastic gliders
Optionally:		with drill holes for fixed attachment to the ground

Dimensions 1140 - 1150 | 1160 – 1170

Dimensions:	B	114 cm (1140+1160)	2-seater bench or 1-seater bench + table
	B	169 cm (1145+1165)	3-seater bench or 2-seater bench + table
	B	224 cm (1150+1170)	4-seater bench or 3-seater bench + table
	T	62 cm
	H	79 cm
	SH	44 cm
Weights:		22 kg (1140+1160)	2-seater bench or 1-seater bench + table
		30 kg (1145+1165)	3-seater bench or 2-seater bench + table
		38 kg (1150+1170)	4-seater bench or 3-seater bench + table

Gerd Rausch

Dipl.-Ing. Gerd Rausch (born 1940 in Köln) is an architect and designer. He studied architecture in Cologne and was subsequently working in the bureau of Prof. Joachim Schürmann for two years. From 1967 to 2005, he was an employed designer at BRUNE and in this period of time he significantly formed the product design of the company with his communication design. Since 2005, he has been dedicated to free painting and special architecture consultation. He is, for example, a founding member of the artist group p e n t i m e n t i.
Gerd Rausch lives and works in Köln.
