Tables
4040+4044

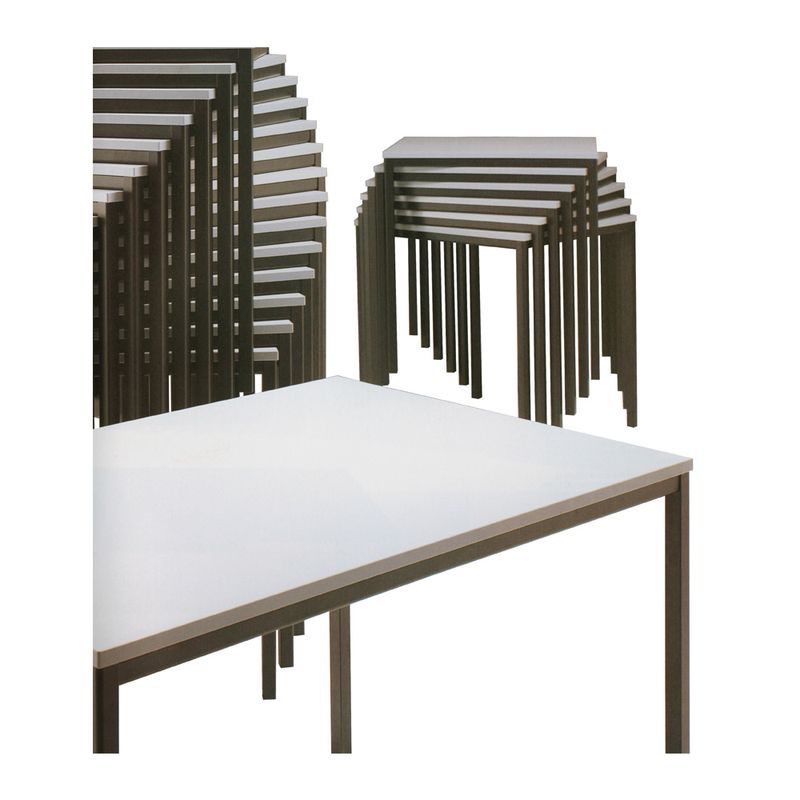

Practical tables with square tubular legs. The tables can be arranged in a wide range of confi gurations and are easy to stack. Long history of succesful use in cafeterias and common rooms of all kinds.
Downloads
- 4040+4044_Productinformation
(212 KB) - 4040-60x60.dwg
(257 KB) - 4040-70x60.dwg
(261 KB) - 4040-70x70.dwg
(262 KB) - 4040-80x60.dwg
(262 KB) - 4040-80x80.dwg
(262 KB) - 4040-110x60.dwg
(262 KB) - 4040-110x70.dwg
(262 KB) - 4040-110x80.dwg
(262 KB) - 4040-120x60.dwg
(262 KB) - 4040-120x70.dwg
(261 KB) - 4040-120x80.dwg
(263 KB) - 4040-140x60.dwg
(262 KB) - 4040-140x70.dwg
(262 KB) - 4040-140x80.dwg
(262 KB) - 4040-160x70.dwg
(262 KB) - 4040-160x80.dwg
(262 KB) - 4044-60x60.dwg
(261 KB) - 4044-70x60.dwg
(267 KB) - 4044-70x70.dwg
(267 KB) - 4044-80x60.dwg
(267 KB) - 4044-80x80.dwg
(267 KB) - 4044-110x60.dwg
(267 KB) - 4044-110x70.dwg
(267 KB) - 4044-110x80.dwg
(267 KB) - 4044-120x60.dwg
(267 KB) - 4044-120x70.dwg
(266 KB) - 4044-120x80.dwg
(267 KB) - 4044-140x60.dwg
(267 KB) - 4044-140x70.dwg
(267 KB) - 4044-140x80.dwg
(267 KB) - 4044-160x70.dwg
(267 KB) - 4044-160x80.dwg
(267 KB)
Frame
Feet made from 30 x 30 mm rectangular tubular steel, horizontal bars from 30 x 28 mm rectangular tubular steel, welded together with invisible welding joints. Screw connections are made with separate, glass-fibre reinforced plastic tape elements that match the rectangular tubular steel.

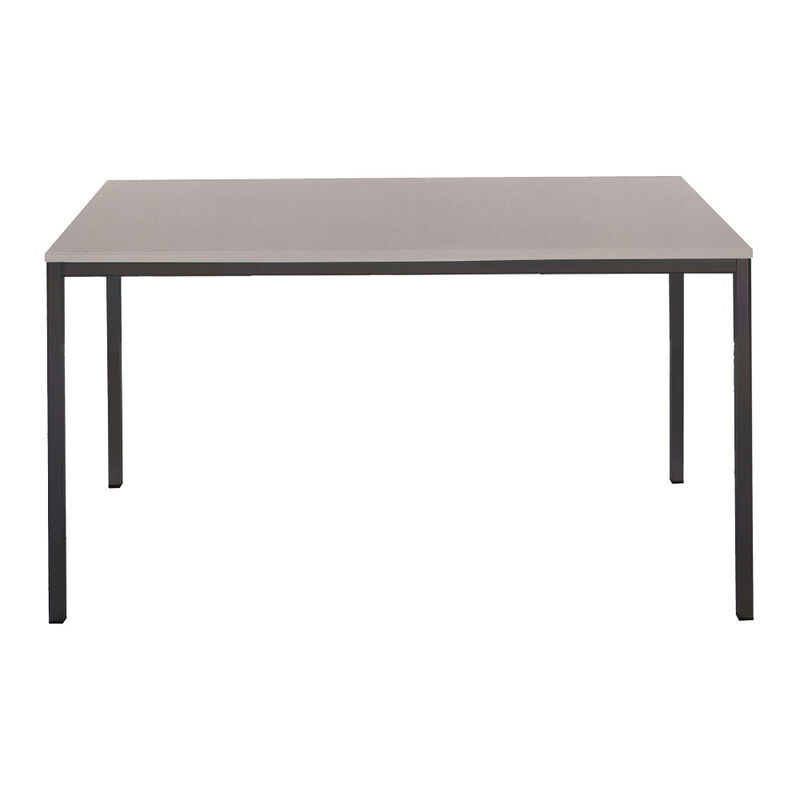

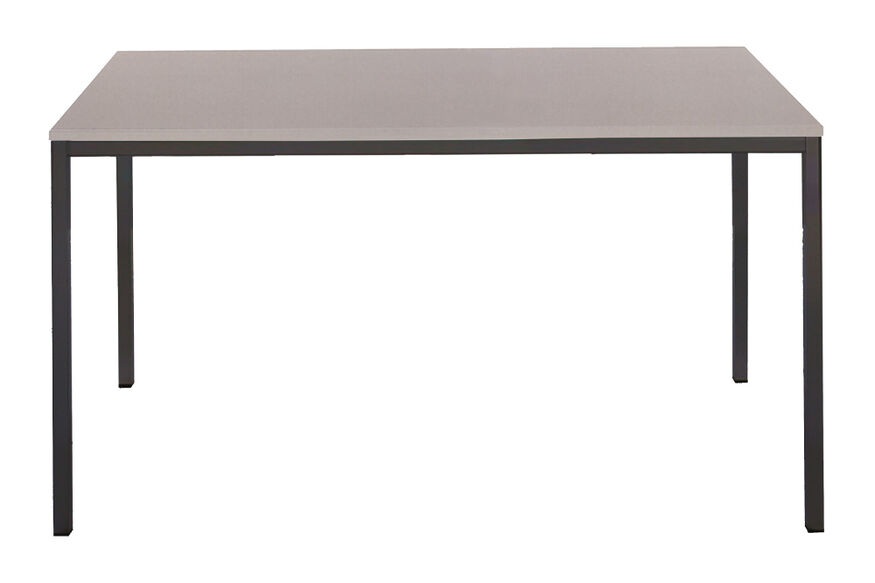

Frame surface 4040
Standard version of the frame: powder-coated in black, optionally powder-coated according to the BRUNE ® collection.

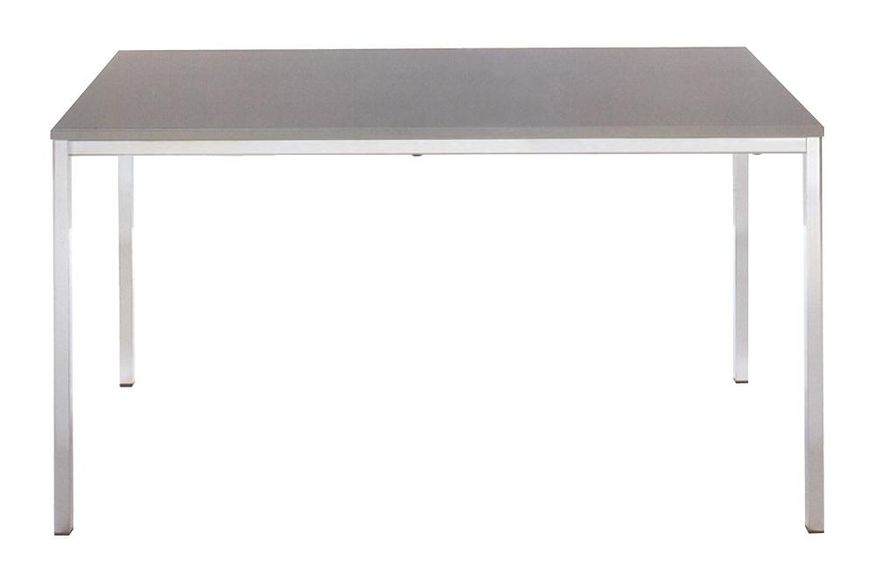

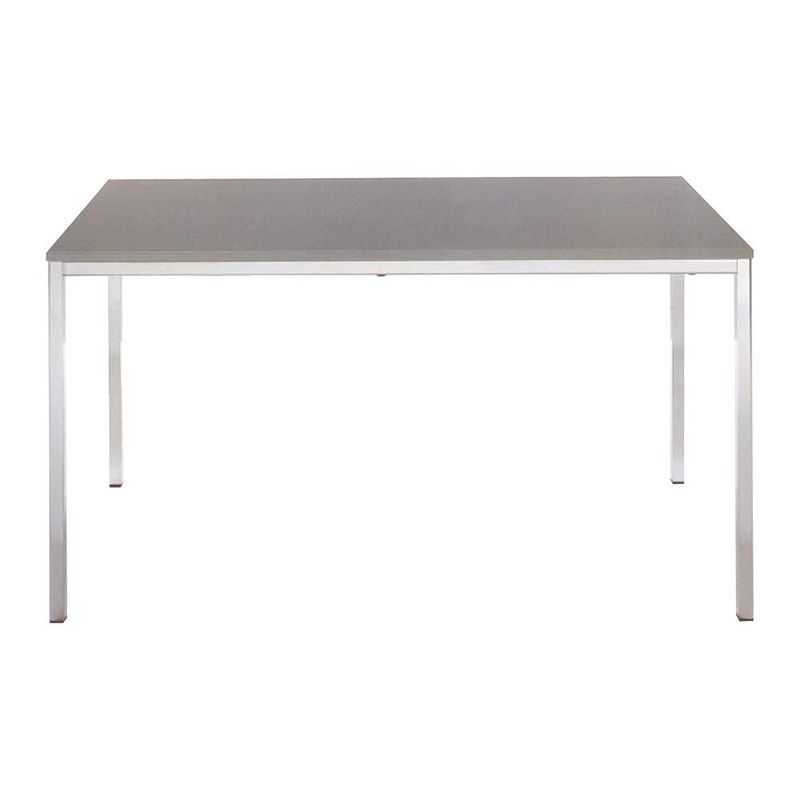

Frame surface 4044
Feet and frame chrome-plated.
Table tops
Plate A: 20 mm thick, high-quality multi-layer plywood plate E1, top surface optionally covered with HPL plastic or wood veneer according to the BRUNE ® collection. Lower surface white HPL or beech veneer. Straight edge, 2 mm thick, in material to match table top (plastic for plastic, veneer for veneer).
Plate B: 20 mm thick, high-quality multi-layer plywood plate E1, top surface optionally covered with HPL plastic or wood veneer according to the BRUNE ® collection. Lower surface white HPL or beech veneer. Edge with solid beechwood edge band, smooth finish, 9 mm thick.
Plate C: 30 mm thick, high-quality multi-layer plywood plate E1, top surface optionally covered with HPL plastic or wood veneer according to the BRUNE ® collection. Lower surface white HPL or beech veneer. Straight edge, 2 mm thick, in material to match table top (plastic for plastic, veneer for veneer).
Plate D: 30 mm thick, 28 mm thick high-quality multi-layer plywood plate E1, top surface optionally covered with HPL plastic or wood veneer according to the BRUNE® collection. Lower surface white HPL or beech veneer. Edge with solid beechwood edge band, smooth finish, 9 mm thick.
Veneer finish
Real wood veneer from the BRUNE ® collection comes as a standard varnished with a low solvent content water-based lacquer, optionally stained to the BRUNE® collection.
HPL surfaces
Resopal®-HPL from the BRUNE® collection.
Gliders
Standard version: | Plastic gliders |
Optionally: | Plastic gliders with height adjustment screws |
Dimensions
Table height: | 74 cm 75 cm | Plates A + B ( + 5 mm with height adjustment screws) Plates C + D ( + 5 mm height adjustment screws) | ||
Table legs can be shortened on request (for an additional fee). | ||||
Table Sizes: | min. 40 cm max. 180 cm | |||
Weights: | ||||
60x60 12 kg 70x70 14 kg | 80x80 17 kg 110x80 21 kg 120x80 22 kg 140x80 25 kg 160x80 28 kg |
