Tables

AFTERNOON

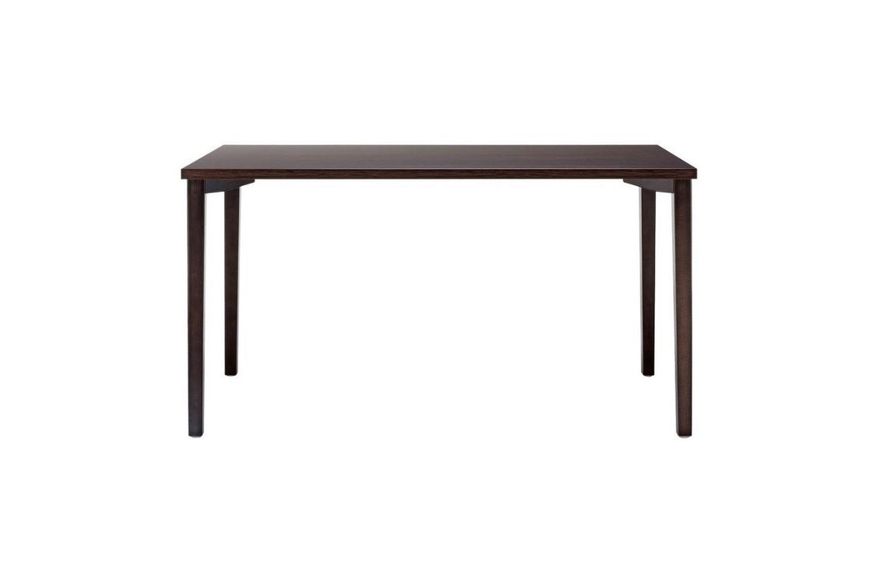

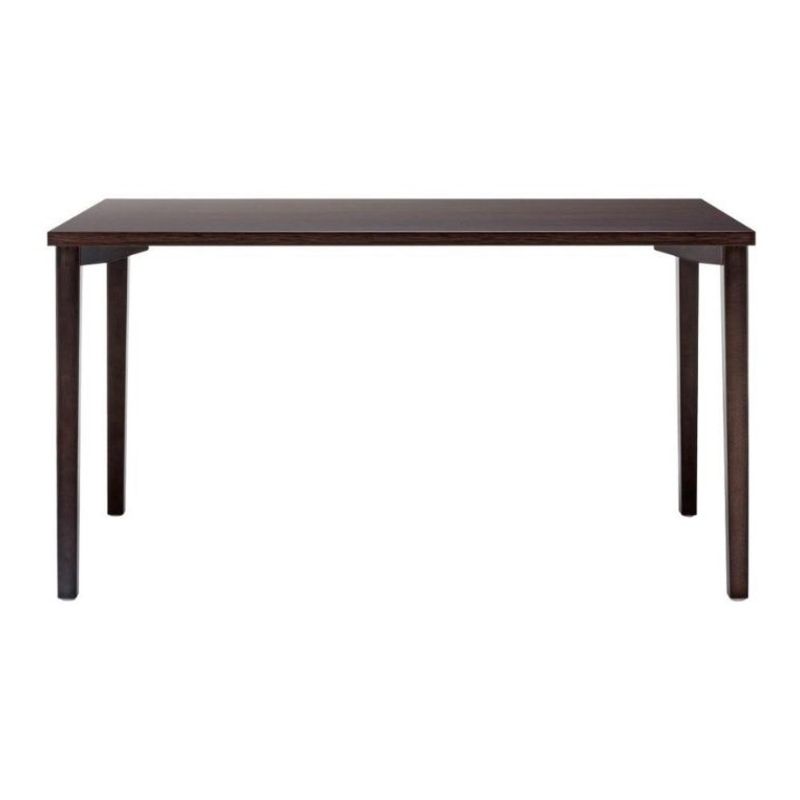

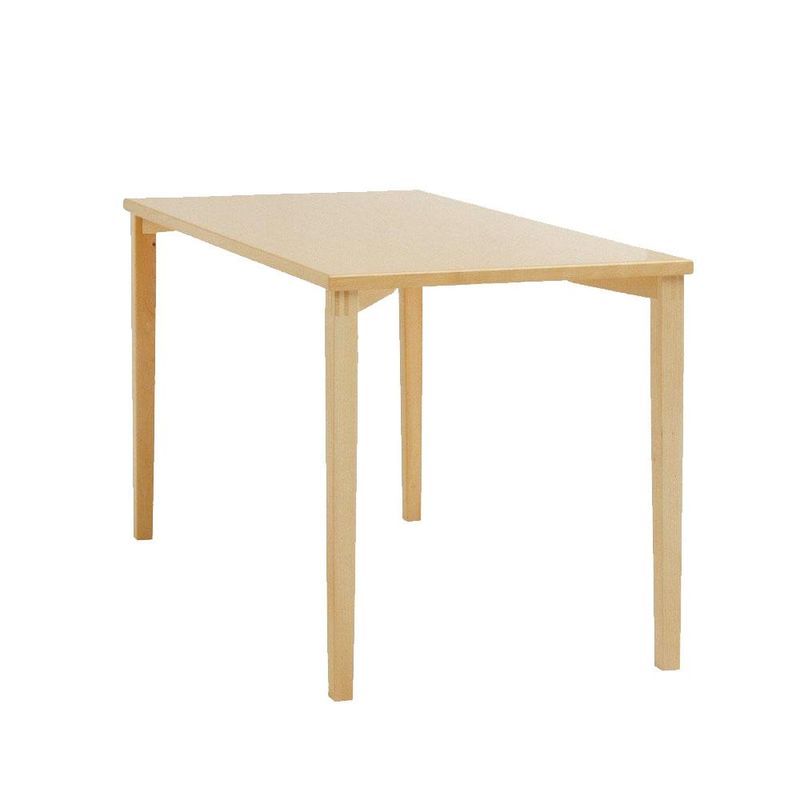

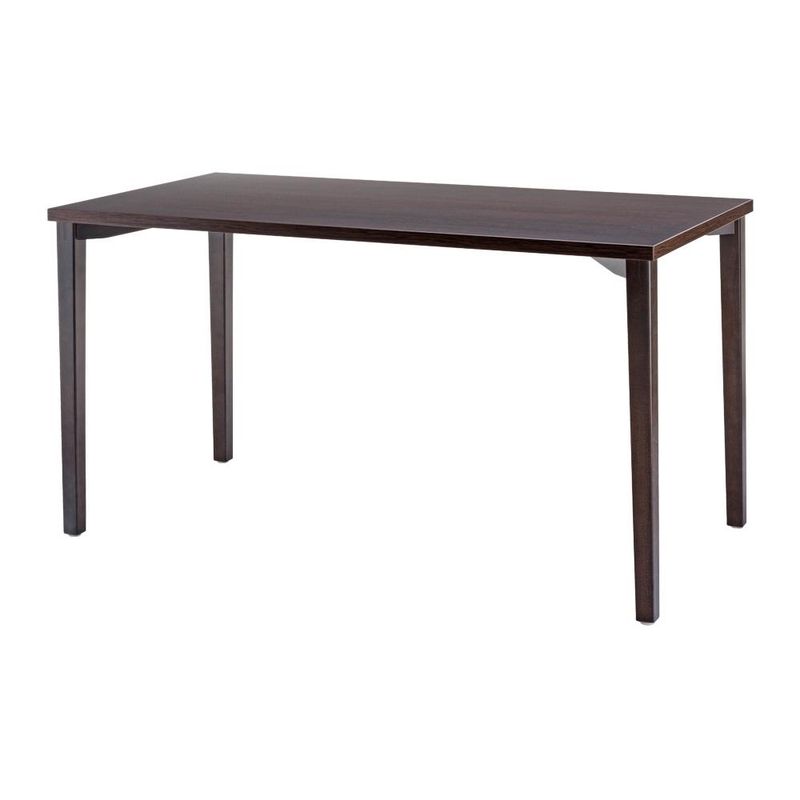

Tables without support frame (suitable for wheel chairs). Legs in solid beech wood, rectangular-shaped, tapered at the bottom, natural coloured or stained according to BRUNE-collection.
Downloads
- 4190_Productinformation
(186 KB) - 4190_70x70.dwg
(285 KB) - 4190_80x80.dwg
(240 KB) - 4190_120x70.dwg
(286 KB) - 4190_120x80.dwg
(240 KB) - 4190_140x70.dwg
(240 KB) - 4190_140x80.dwg
(240 KB) - 4190_160x70.dwg
(240 KB) - 4190_160x80.dwg
(240 KB) - 4191_140x70x61_Trapez.dwg
(246 KB) - 4191_160x80x69_Trapez.dwg
(246 KB) - 4192_DM140.dwg
(239 KB) - 4192_DM160.dwg
(239 KB) - 4196_DM100.dwg
(231 KB) - 4196_DM120.dwg
(231 KB)
Areas of use
RESTAURANTS + FINE DINING | SEMINARS + CONFERENCES | CAFETERIAS + STAFF CANTEENS | HEALTHCARE SERVICES | LIVING
Frame

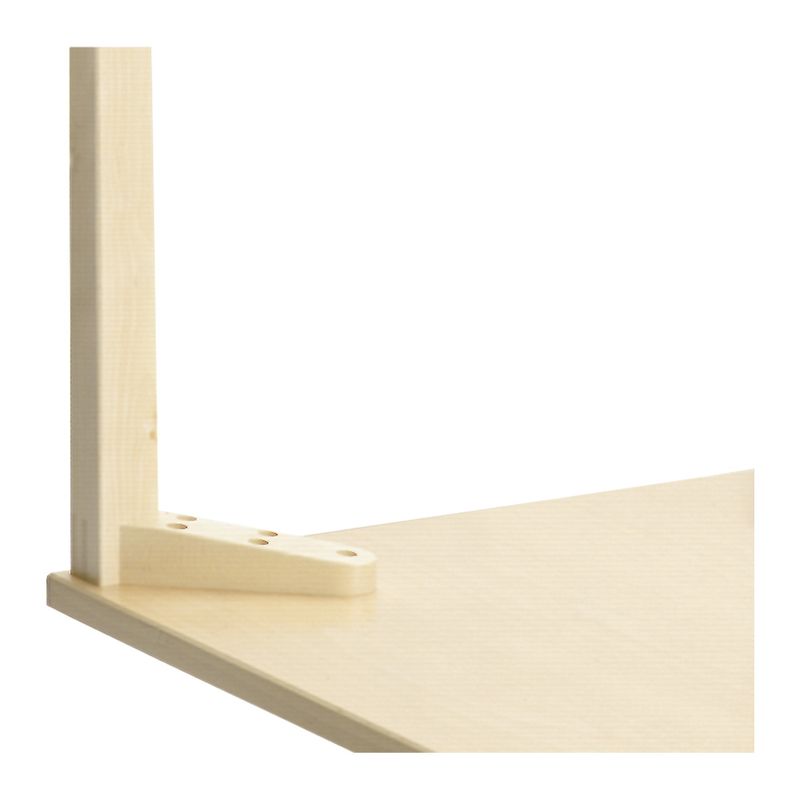

Table system without ribs or any other horizontal support elements (wheelchair access), tapered square-shaped table legs made from beech wood, cross section 55/55 mm on top and 40/40 mm at the bottom, directly connected to the table top at 5 screwing points.
Frame surfaces
Wooden parts beechwood, varnished with UV-hardened, low solvent water paint.
Table tops
Plate C: 30 mm thick, high-quality multi-layer plywood plate E1, top surface optionally covered with HPL plastic or wood veneer according to the BRUNE ® collection. Lower surface white HPL or beech veneer. Straight edge, 2 mm thick, in material to match table top (plastic for plastic, veneer for veneer).
Plate D: 30 mm thick, 28 mm thick high-quality multi-layer plywood plate E1, top surface optionally covered with HPL plastic or wood veneer according to the BRUNE® collection. Lower surface white HPL or beech veneer. Edge with solid beechwood edge band, smooth finish, 9 mm thick.
Plate E: 30 mm thick, 28 mm high-quality multi-layer plywood board E1, coated in high-pressure laminate (HPL) or veneer according to the BRUNE® collection. Lower surface: white HPL or beech veneer.
Edge: solid beech edge band, crowned, 9 mm thick.
Veneer finish
Real wood veneer from the BRUNE ® collection comes as a standard varnished with a low solvent content water-based lacquer, optionally stained to the BRUNE® collection.
HPL surfaces
Resopal®-HPL from the BRUNE® collection.
Gliders
Optionally: Plastic or felt gliders, or gliders with metal caps.
Dimensions
Table Height: | 75 cm |
| ||
Weights: | Rectangular | Trapezial | ||
70x70 15 kg 80x80 18 kg | 140x70x61 20 kg
Semi circle Ø140 21 kg
Circle Ø100 21 kg |
