ALVO
Classic shaped wood shells with a milled edge have been used for a long time to achieve comfortable flexibility. ALVO (Latin for waist) interprets in a new form the archetypes of acomfortable shaped wood shell. It combines the oscillation of the back rest with the aid of concave forming and creates a unique sense of sitting. The sophisticated structure of the metal frame is reminiscent of the Scandinavian tradition and has the potential to become a design classic.
Downloads
- ALVO_Productinformation
(483 KB) - 1440.dwg
(4 MB) - 1440-001.dwg
(4 MB) - 1440-003.dwg
(4 MB) - 1441.dwg
(2 MB) - 1445.dwg
(4 MB) - 1445-001.dwg
(5 MB) - 1445-003.dwg
(5 MB) - 1446.dwg
(3 MB) - 1450.dwg
(2 MB) - 1450-001.dwg
(4 MB) - 1450-003.dwg
(4 MB) - 1451.dwg
(4 MB)

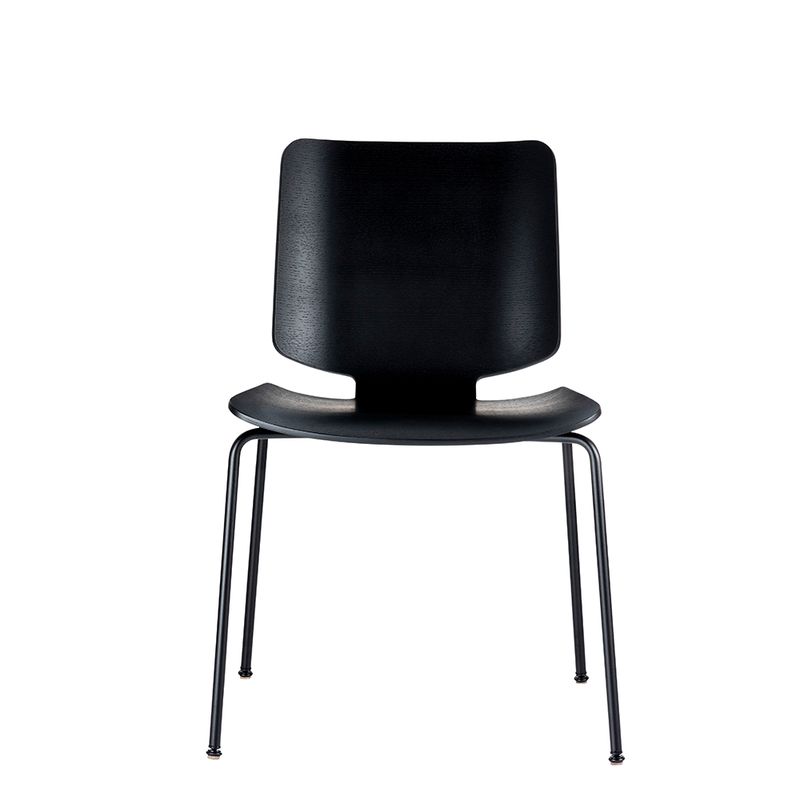

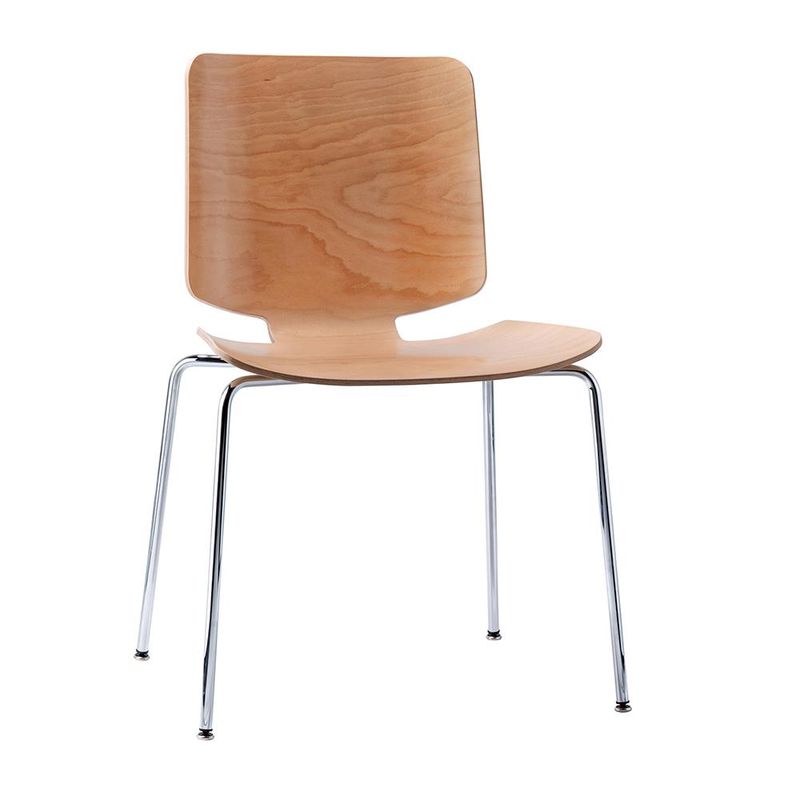

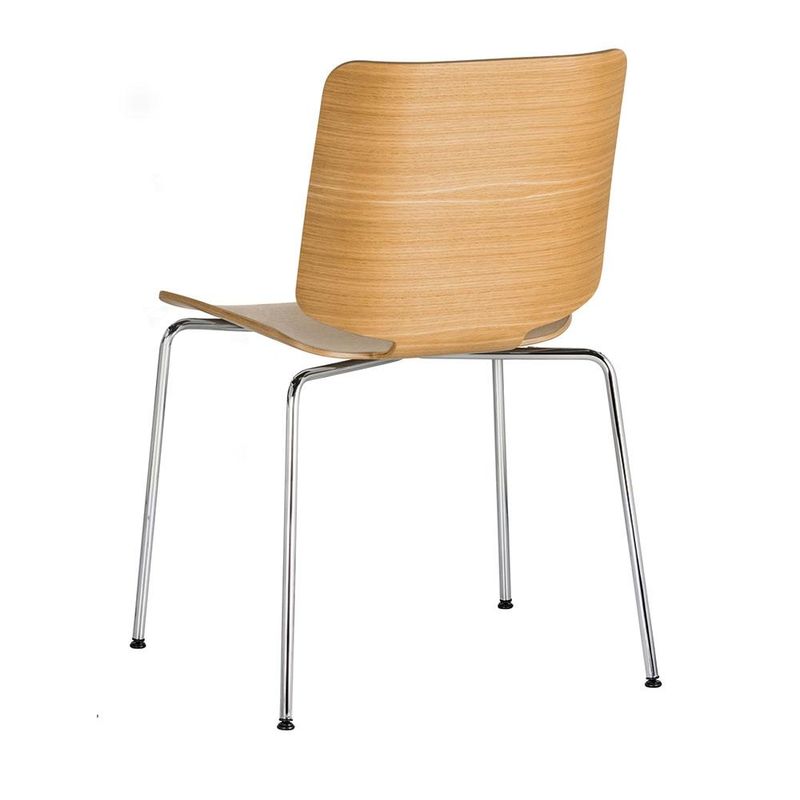

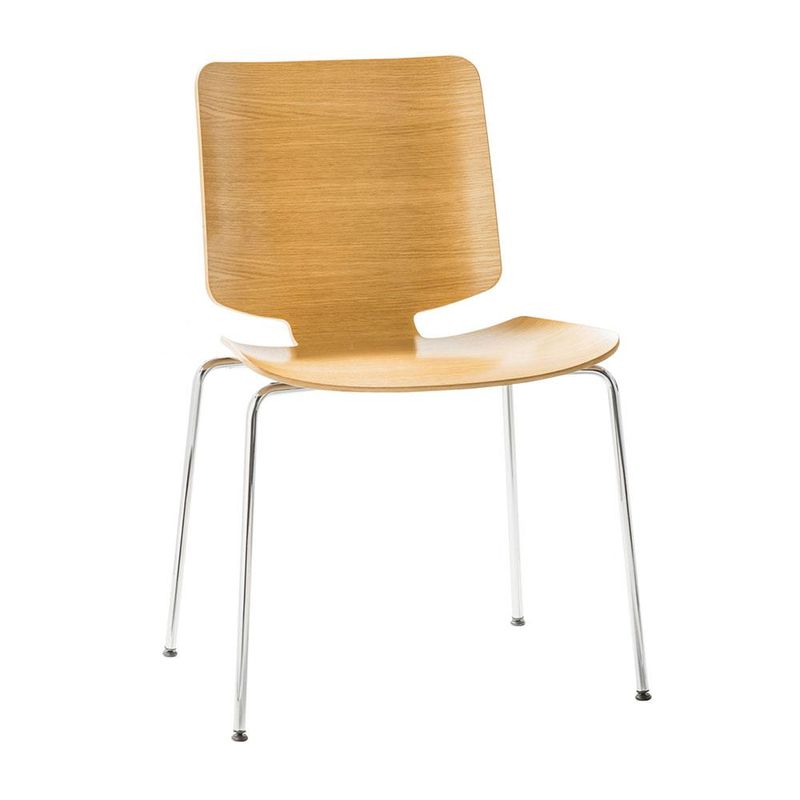

Frame | 1440 - 1446
Four-legged frame, made of precision round steel tube ZSTE 420, Ø 16 x 2 mm. Armrests made of steel wire Ø 10 mm, firmly welded on the frame.

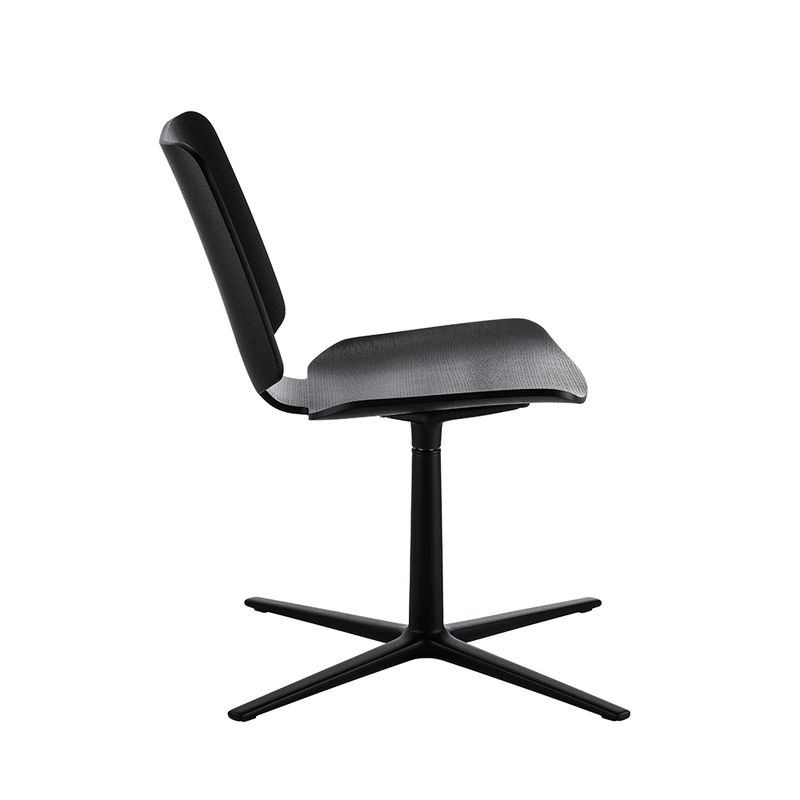

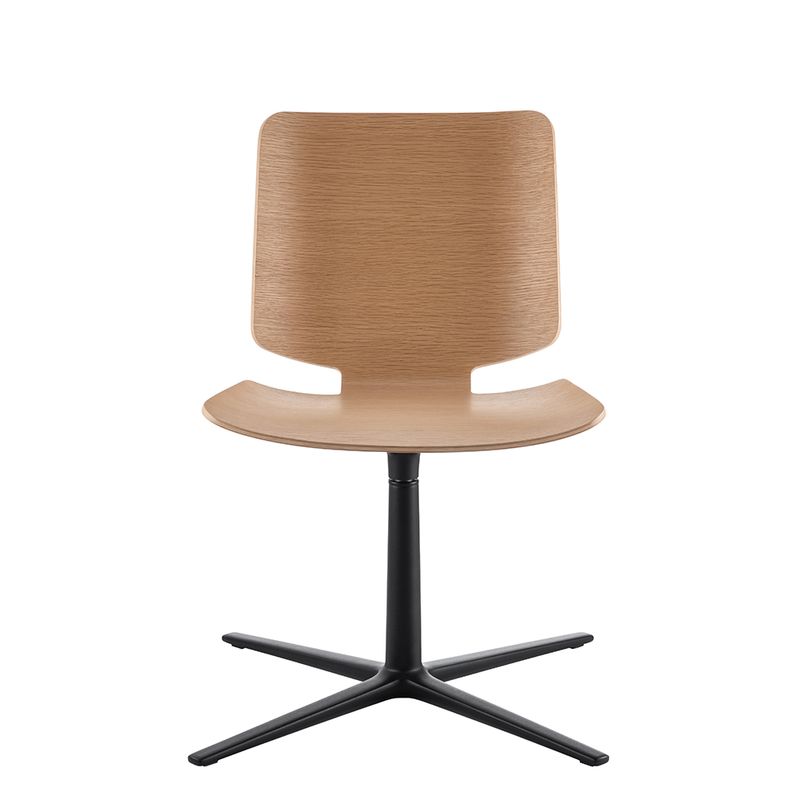

Frame | 1450 - 1451

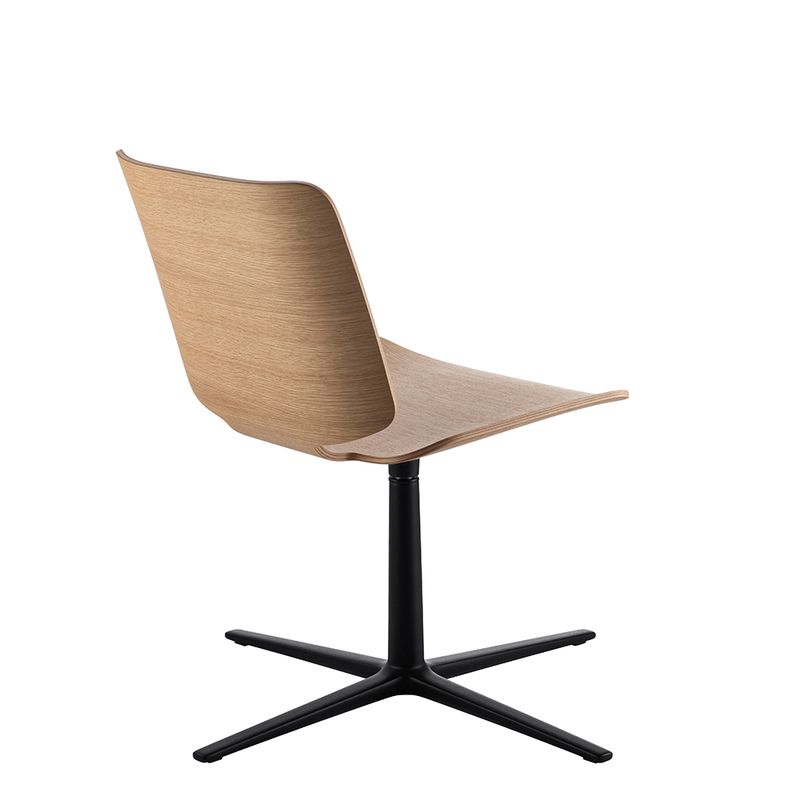

Die-cast aluminium frame. 4-arm base with conical arms. Swivel column Ø 50 mm at the bottom and Ø 40 mm at the top.
Frame surfaces | 1440 - 1446
Standard version of the frame: chrome-plated, optionally powder-coated according to the BRUNE ® collection.
Frame surfaces | 1450-1451
Polished aluminium frame as standard, optionally powder-coated with structured lacquer in matt black.
Seat shell
Ergonomically shaped solid shell made from beech plywood, 9 mm thick, in transition from seat to back about 12 mm thick, multi-glued. By means of threaded insert invisibly screwed to the frame.

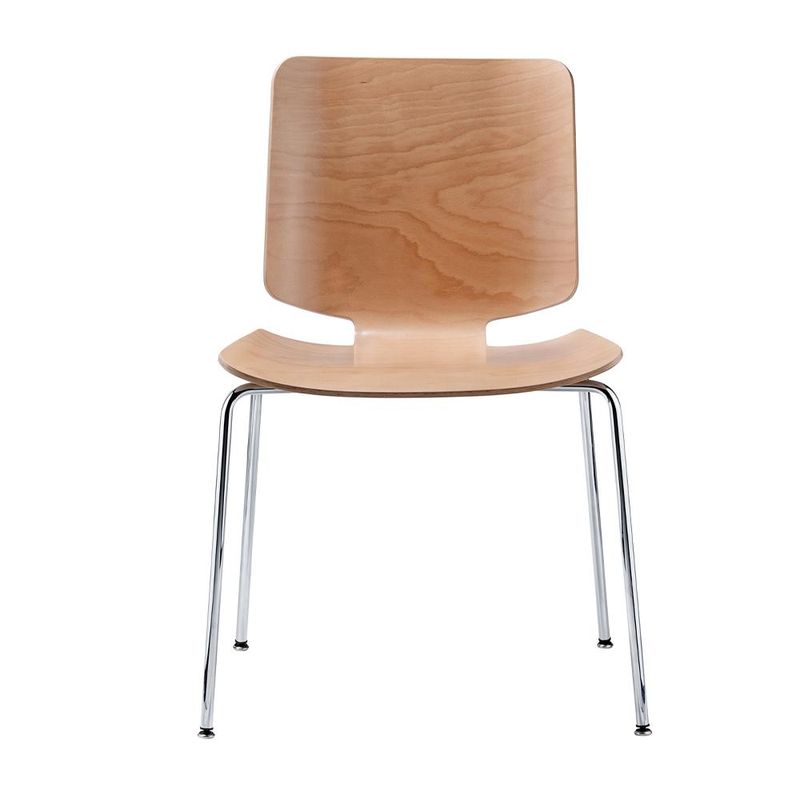

Wooden surfaces

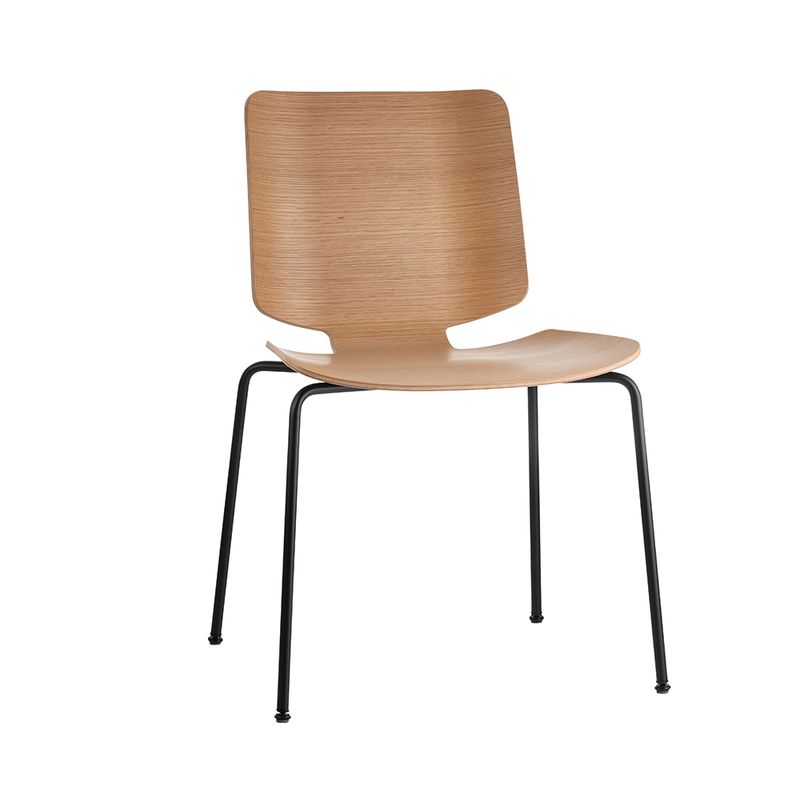

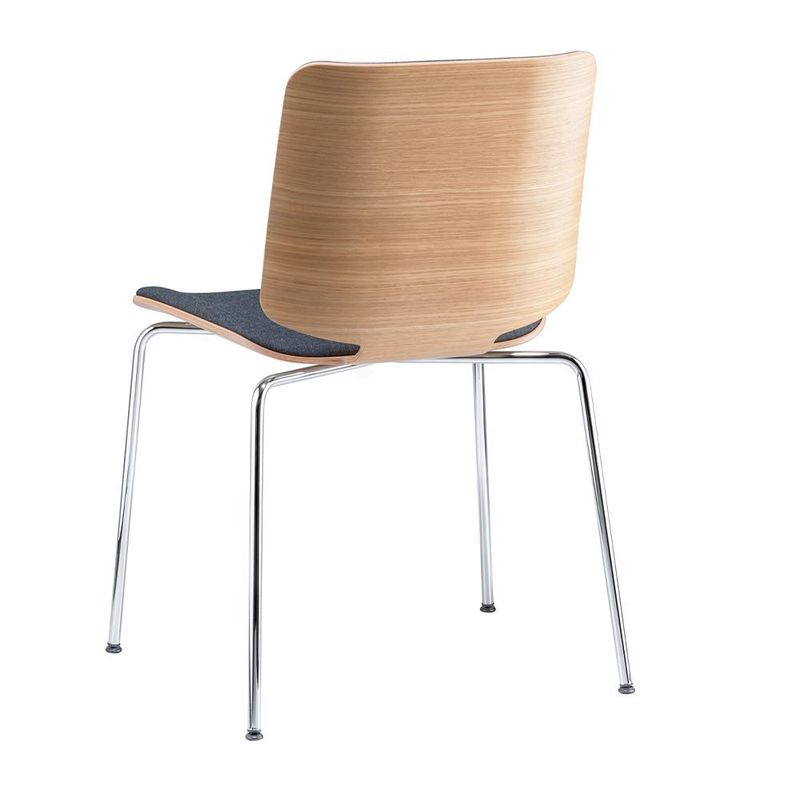

Wooden seat shell cross-veneered in beech as standard, natural lacquer (optionally matt), with low-solvent water-based lacquer, optionally stained according to BRUNE® collection. Optional: seat shell with surface veneer in oak, cross-veneered.

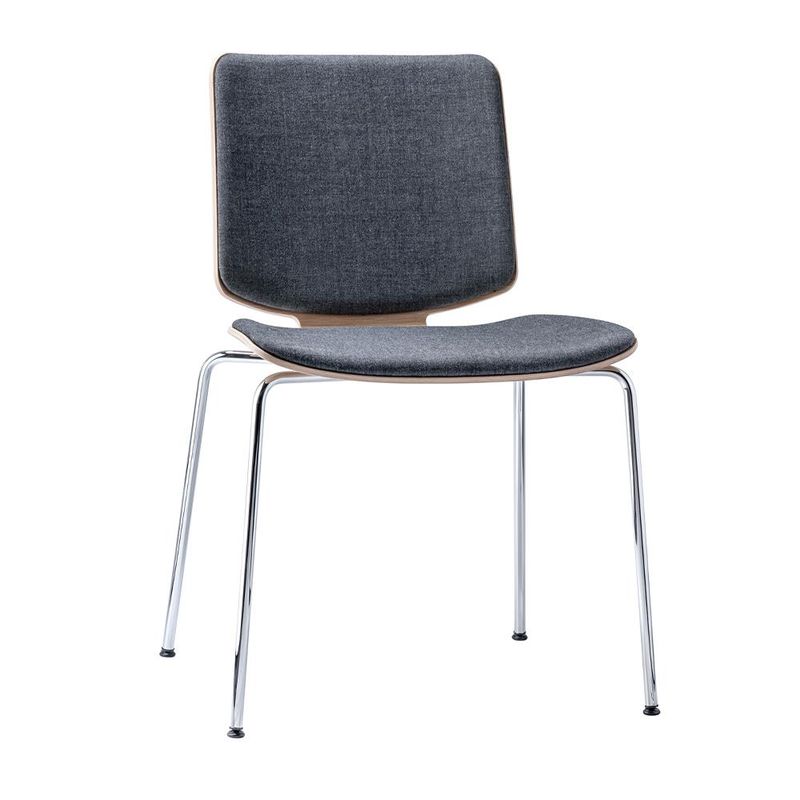

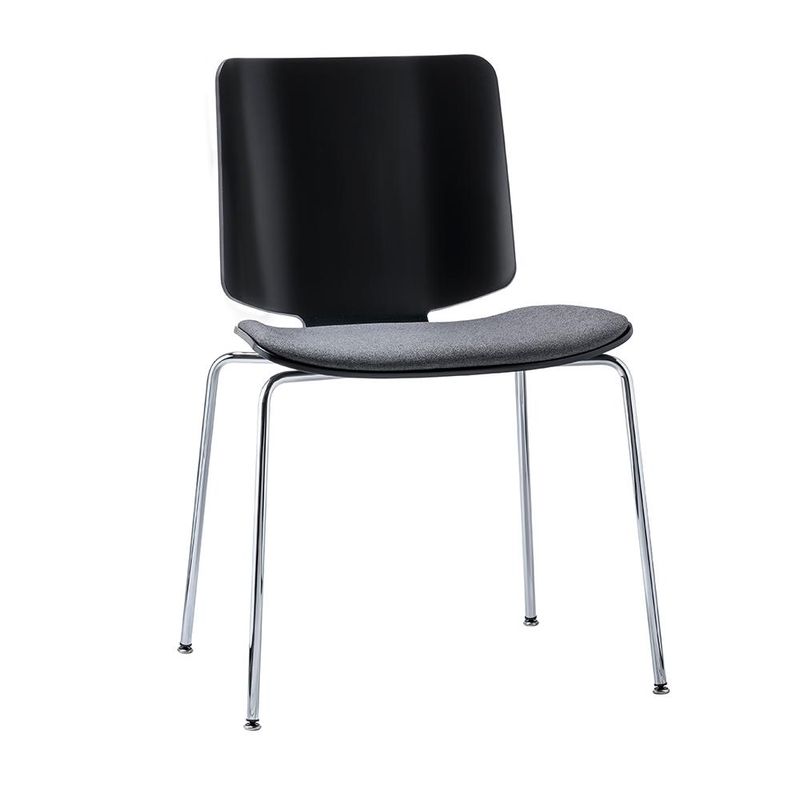

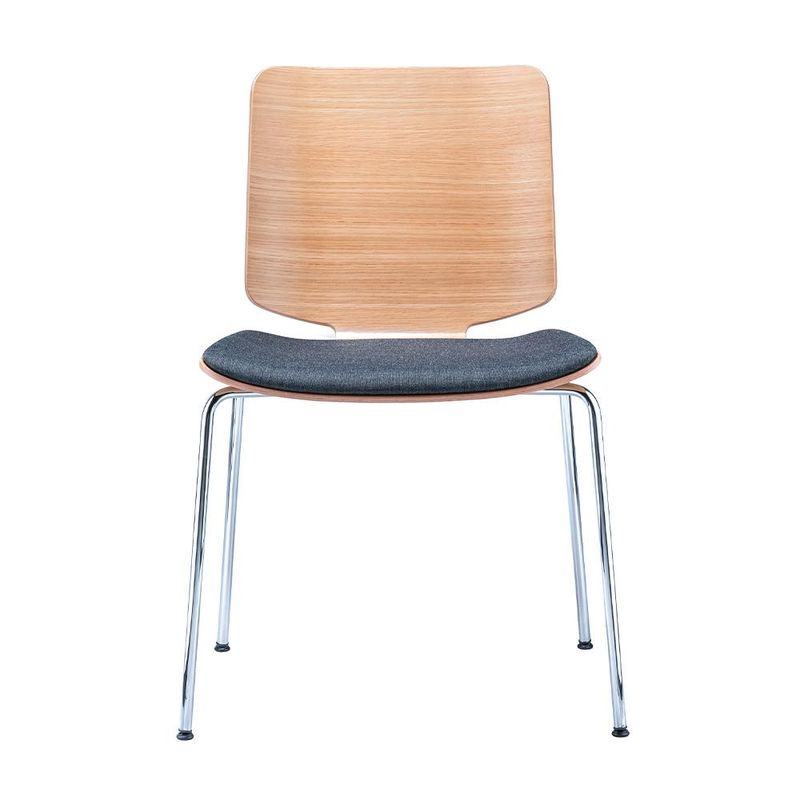

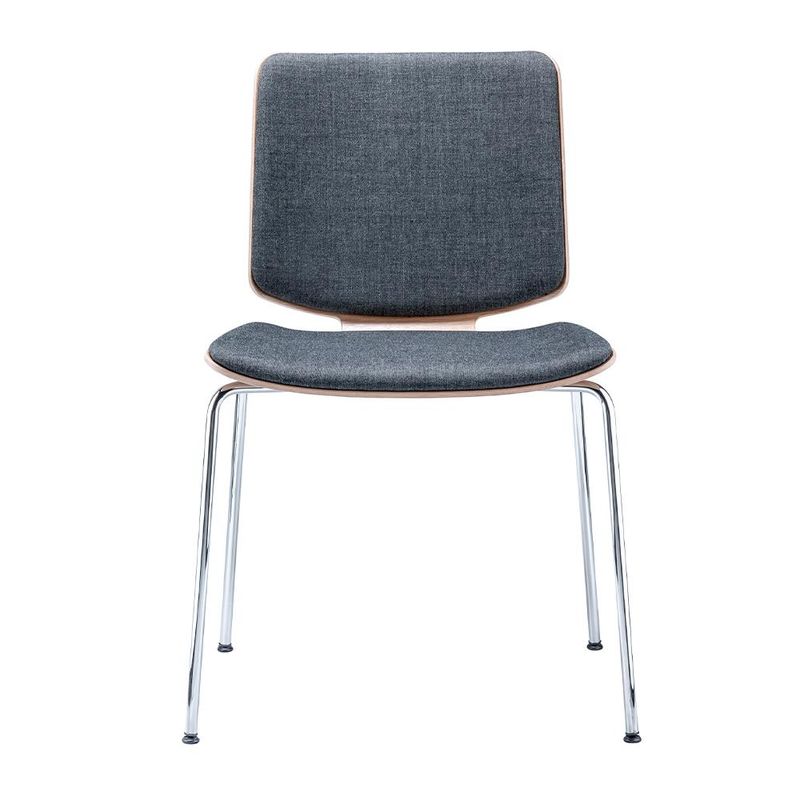

Upholstery

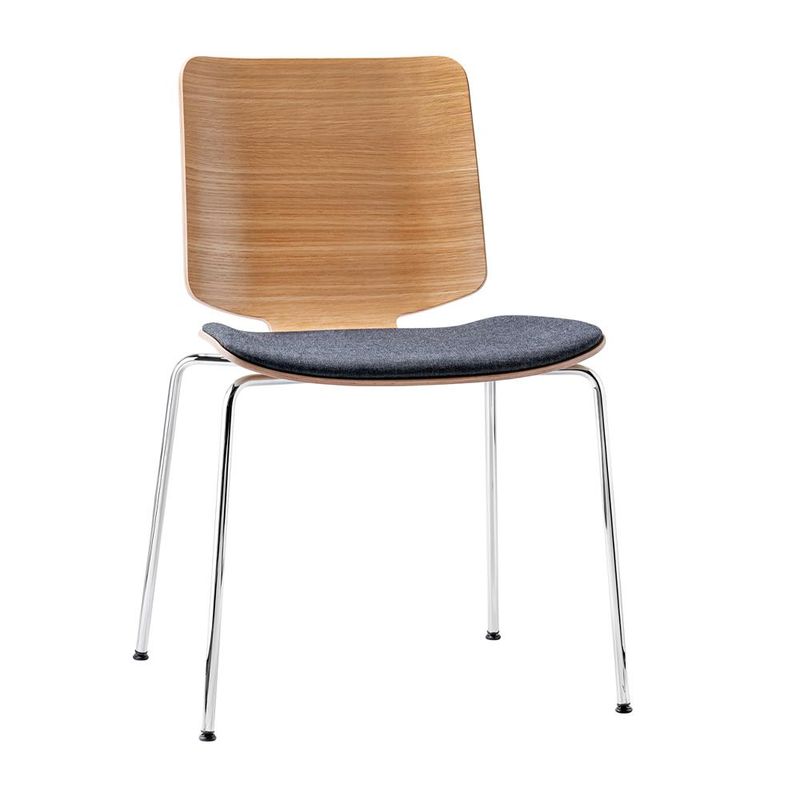

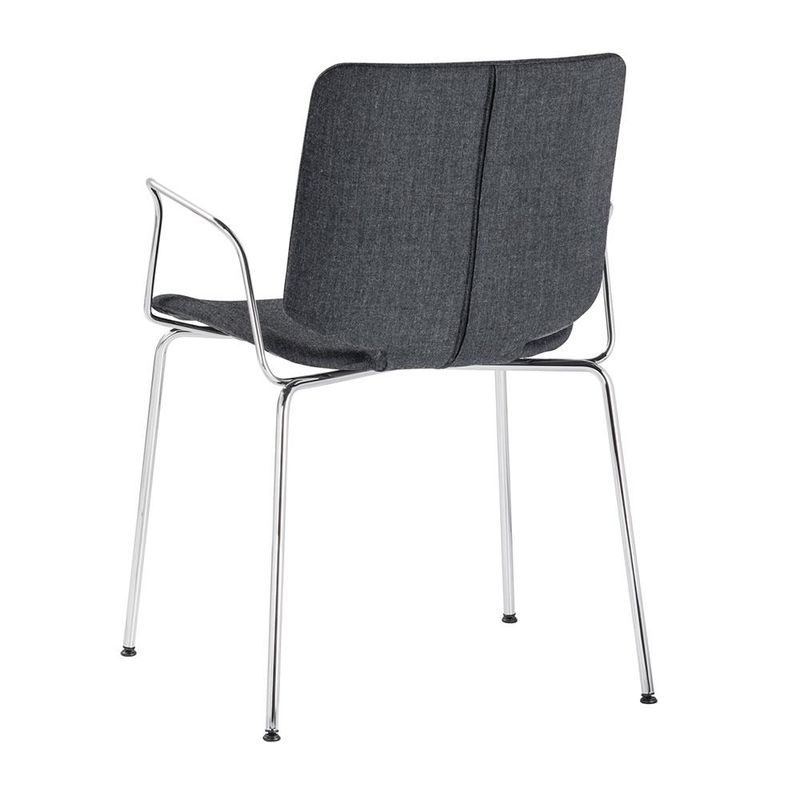

Seats or seats and back supports are optionally available with partial upholstery or a fully upholstered seat shell, fabric cover according to the BRUNE® collection.
| Seat cushion foam: | SG/CH 60/70 | ca. 15 mm thick | ||
| Back cushion foam: | SG/CH 60/70 | ca. 15 mm thick | ||
| Back cushion foam on back: | SG/CH 35/50 | ca. 5 mm thick | ||
| Seat cushion foam padding: | SG/CH 60/70 | ca. 15 mm thick | ||
| Back cushion foam padding: | SG/CH 60/70 | ca. 10 mm thick |
SG = specific gravity CH= compression hardness
Stacking protection
The stacking protection made of formfleece is firmly bolted to the frame.

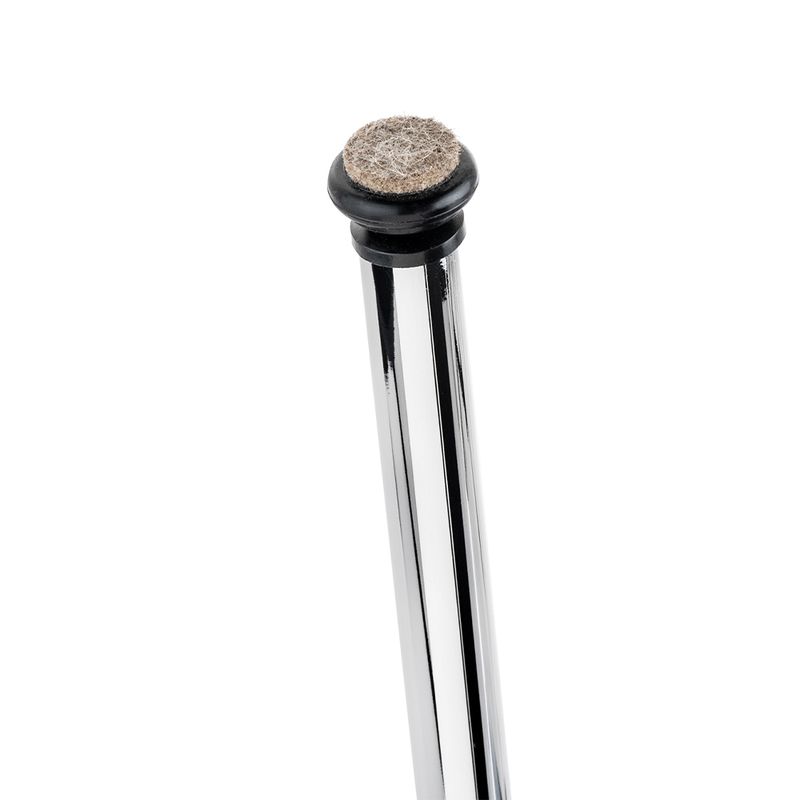

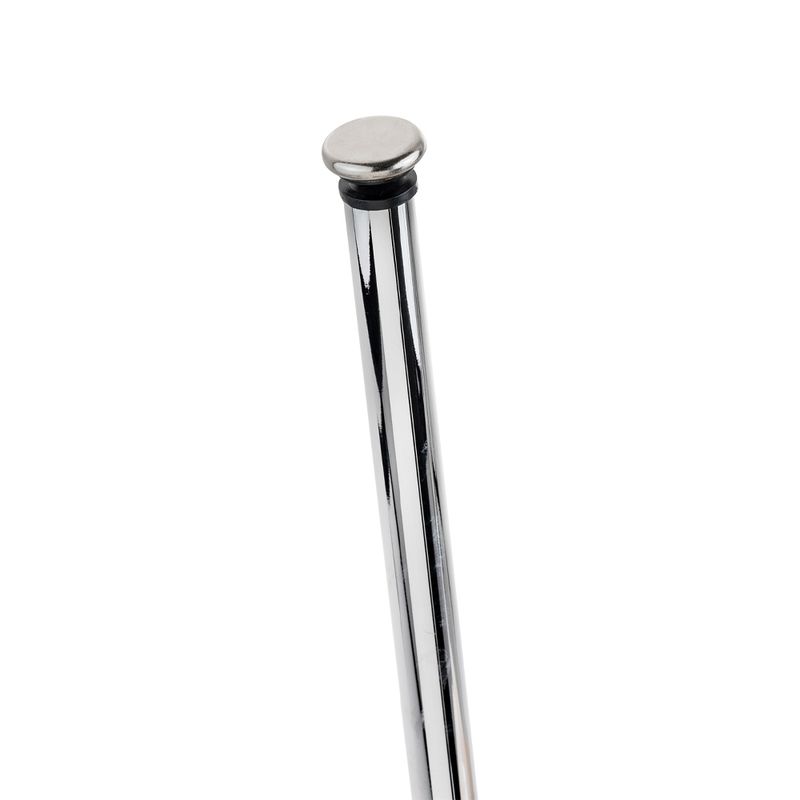

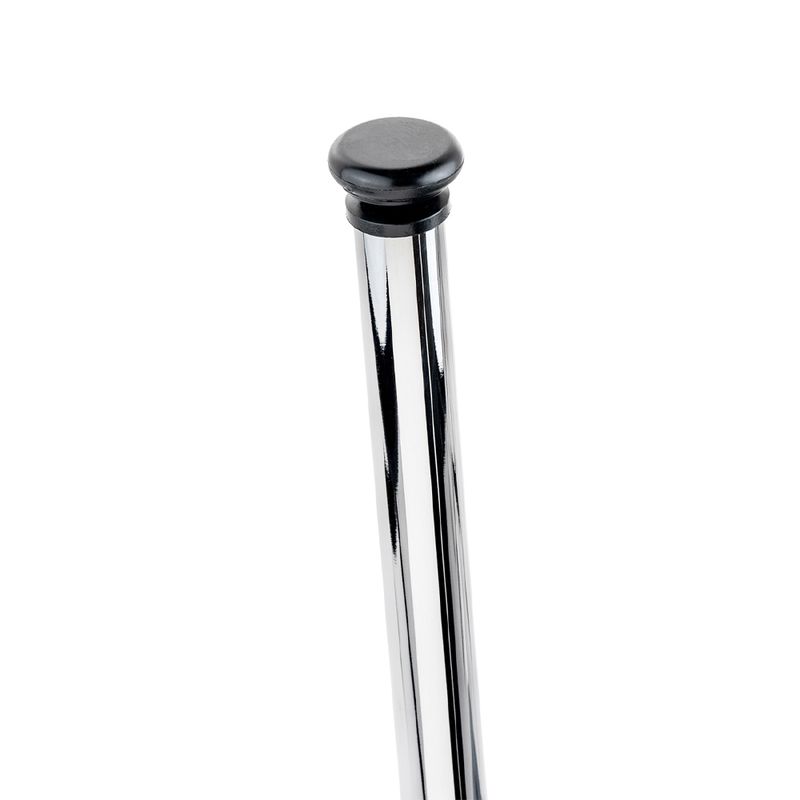

Gliders | 1440-1446
| Standard version: | Flexible gliders with plastic insert | |
| Optionally: | Flexible gliders with felt insert | |
| Flexible metal gliders |
Gliders | 1450-1451
| Standard version: | Without gliders | |
| Optionally: | Plastic gliders | |
| Felt gliders |

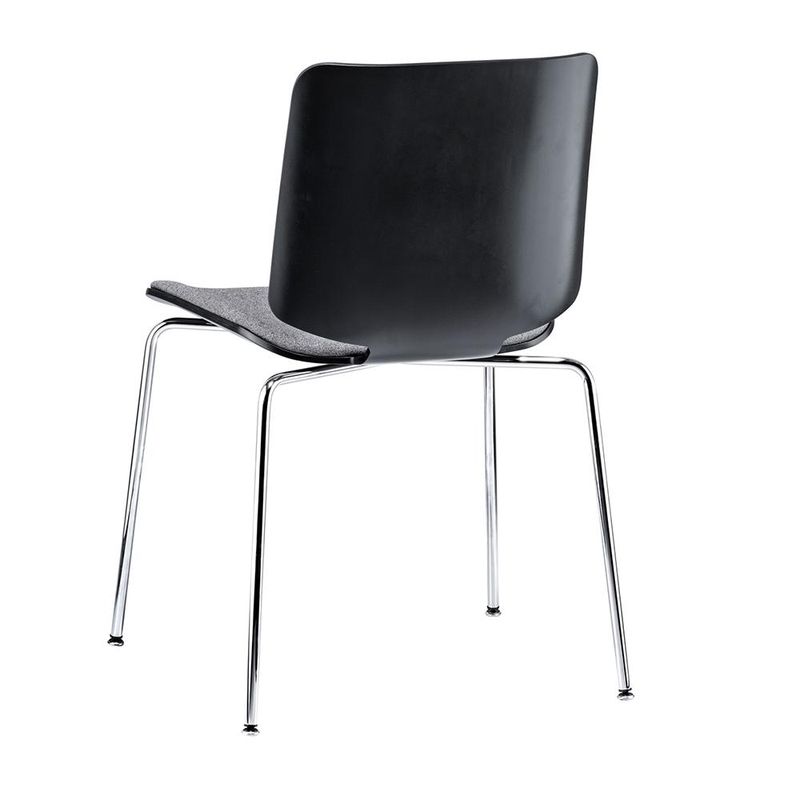

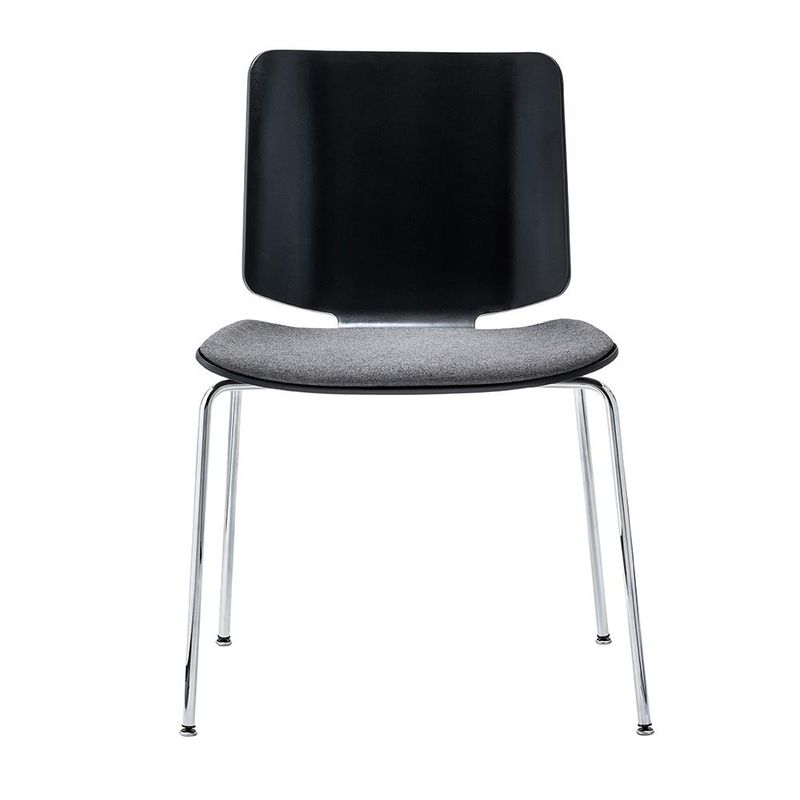

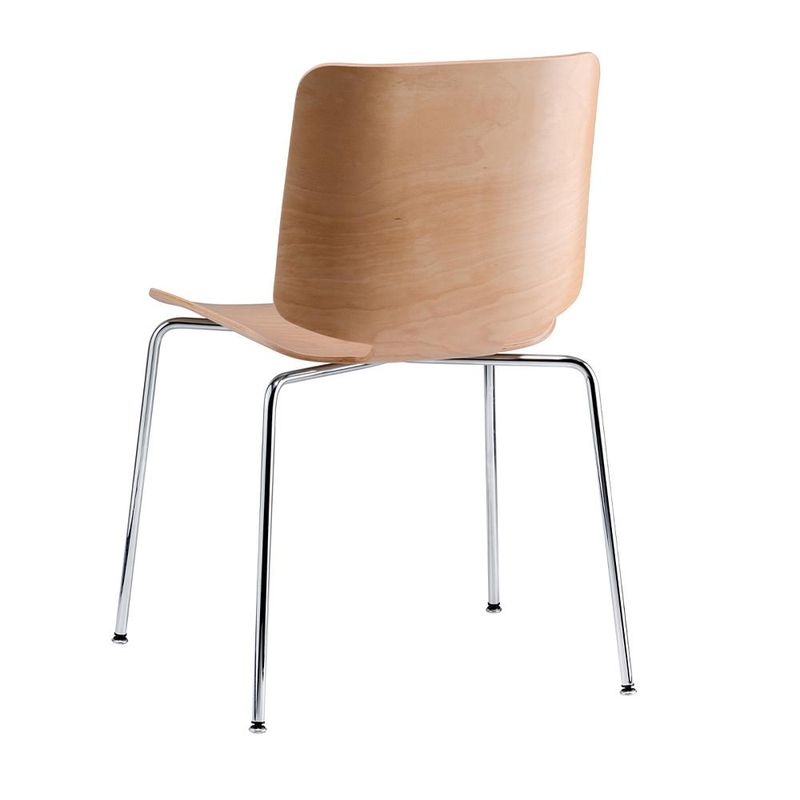

Dimensions | 1440 without armrests
| Width: | B | 57,0 cm | ||
| Depth: | T | 54,5 cm | ||
| Total height: | H | 83,0 cm | ||
| Seat height: | SH | 45,0 cm | ||
| Weight: | 5,5 kg | |||
| 6,0 kg (seat padding) 6,5 kg (front side padding) 6,0 kg (fully upholstered) |

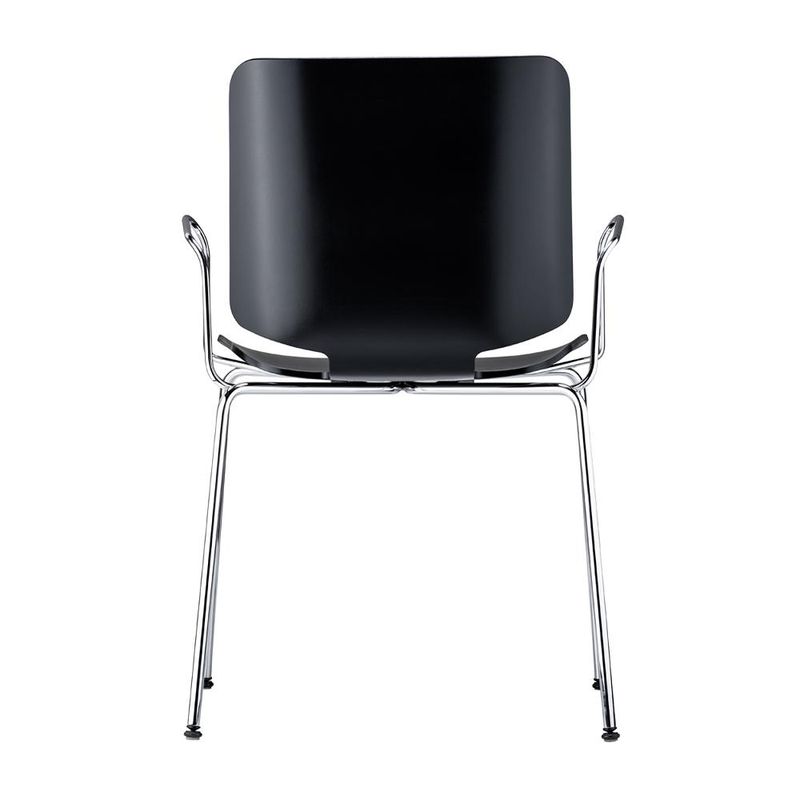

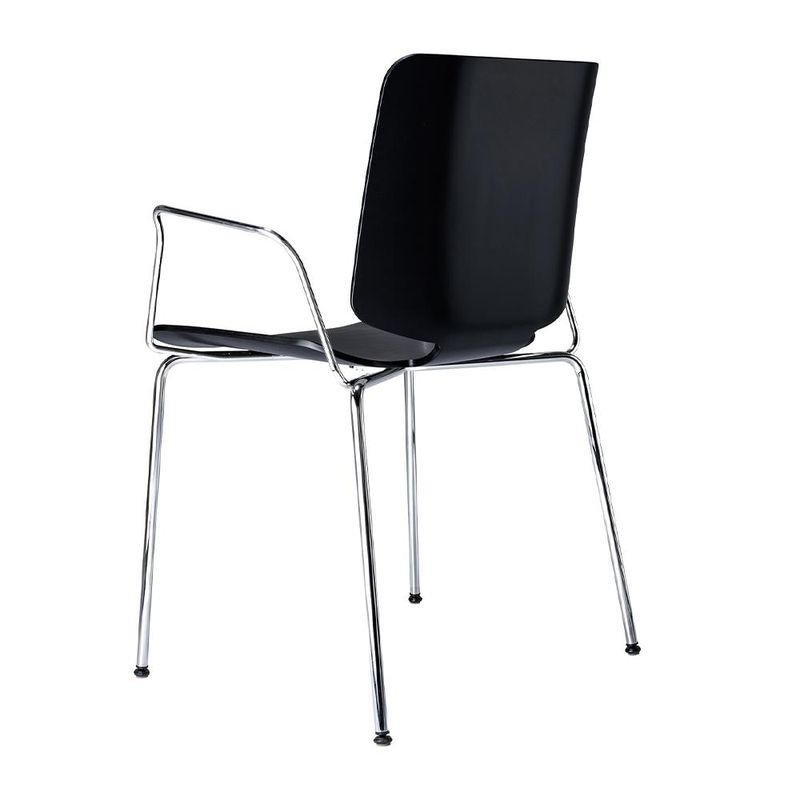

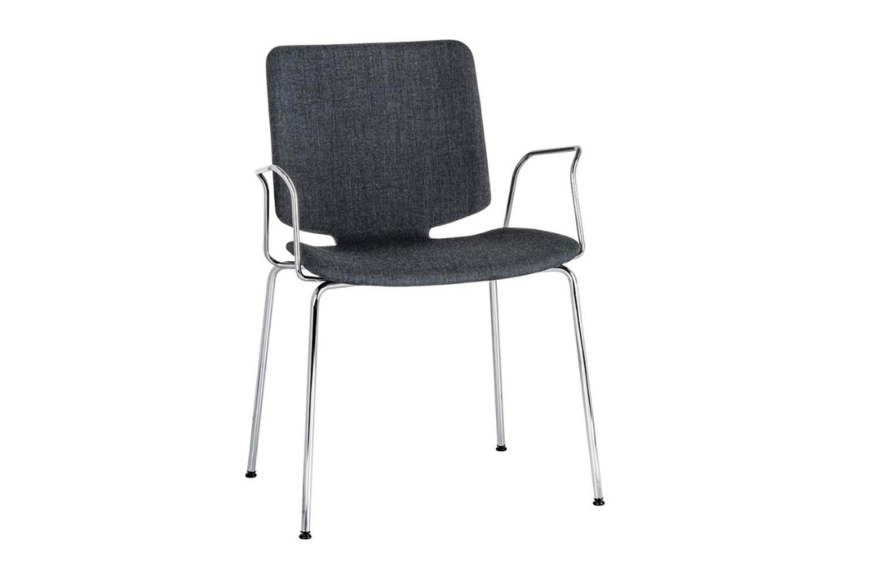

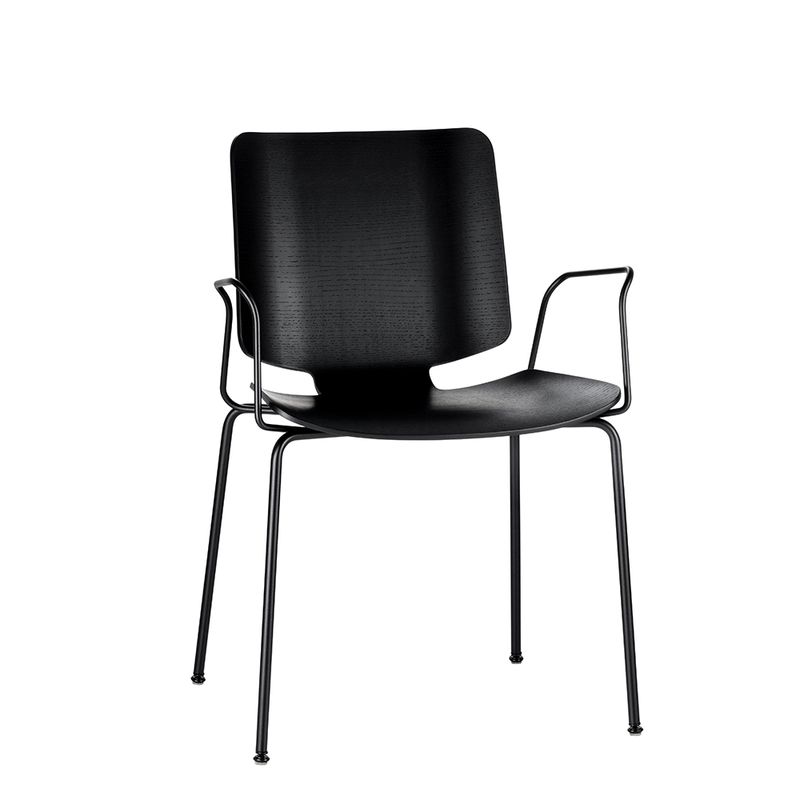

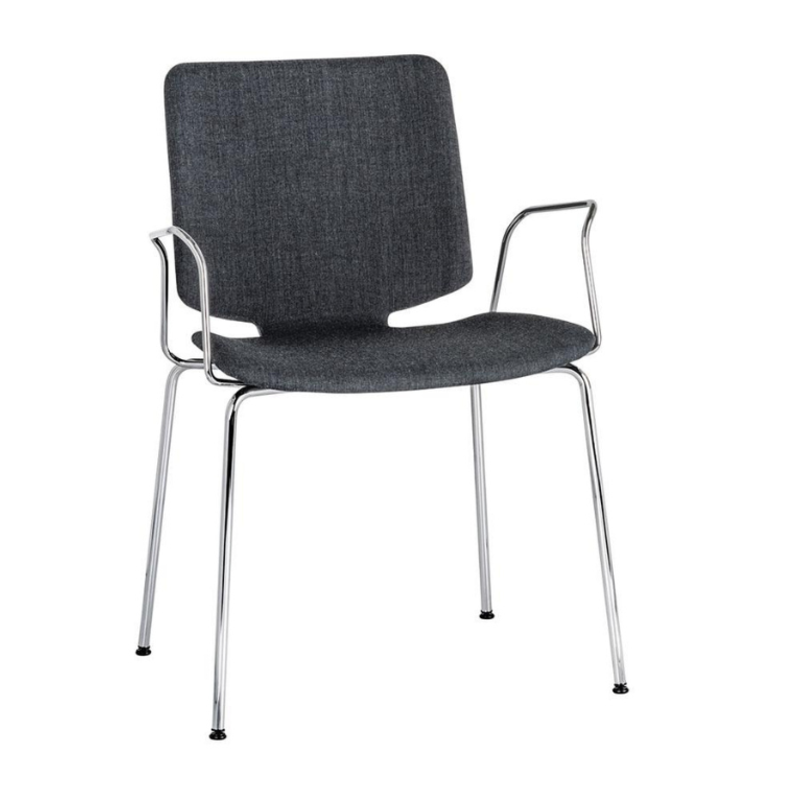

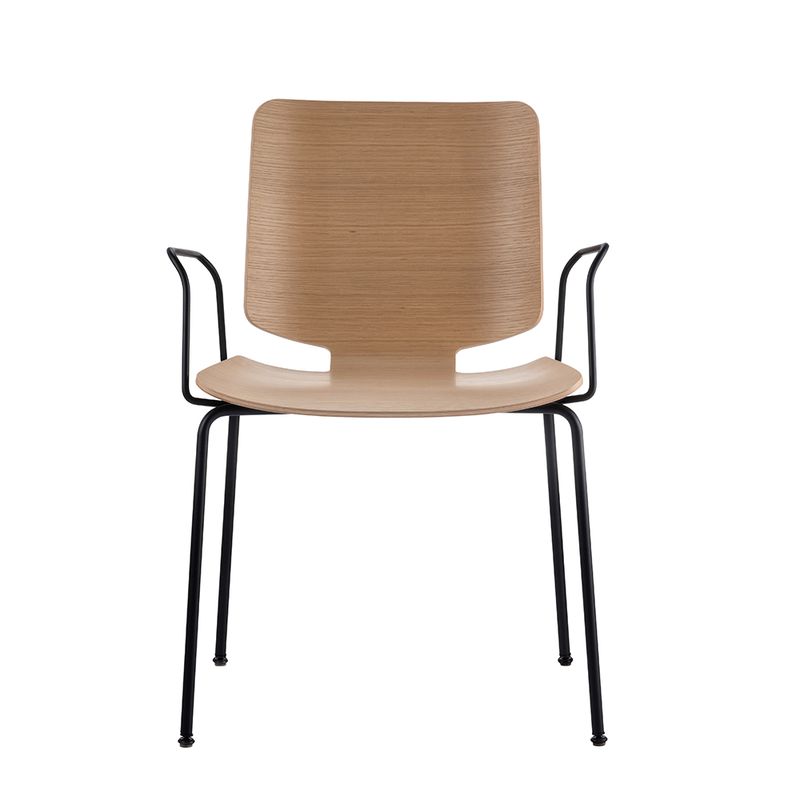

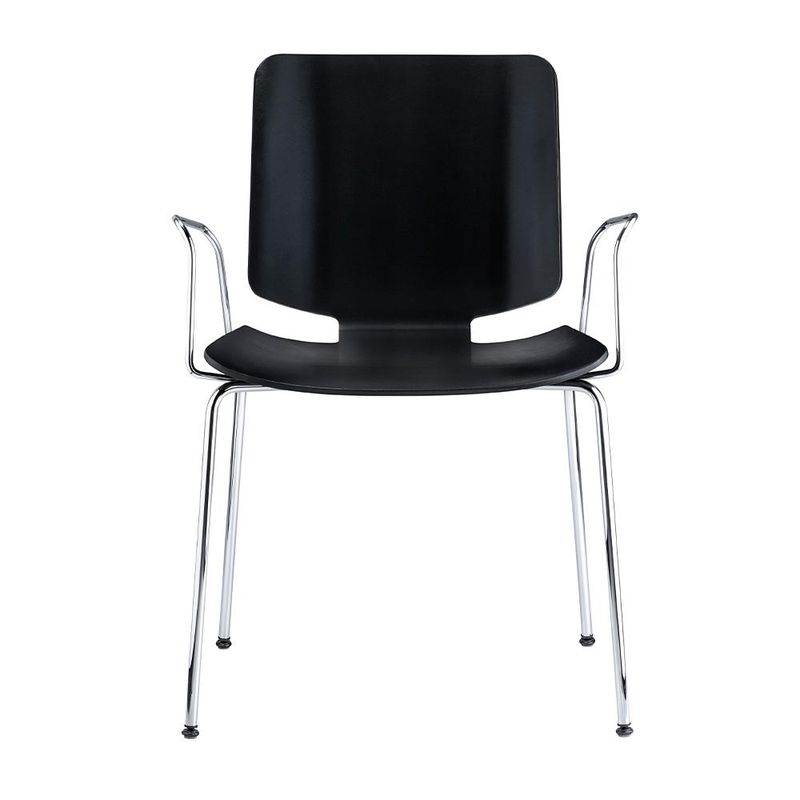

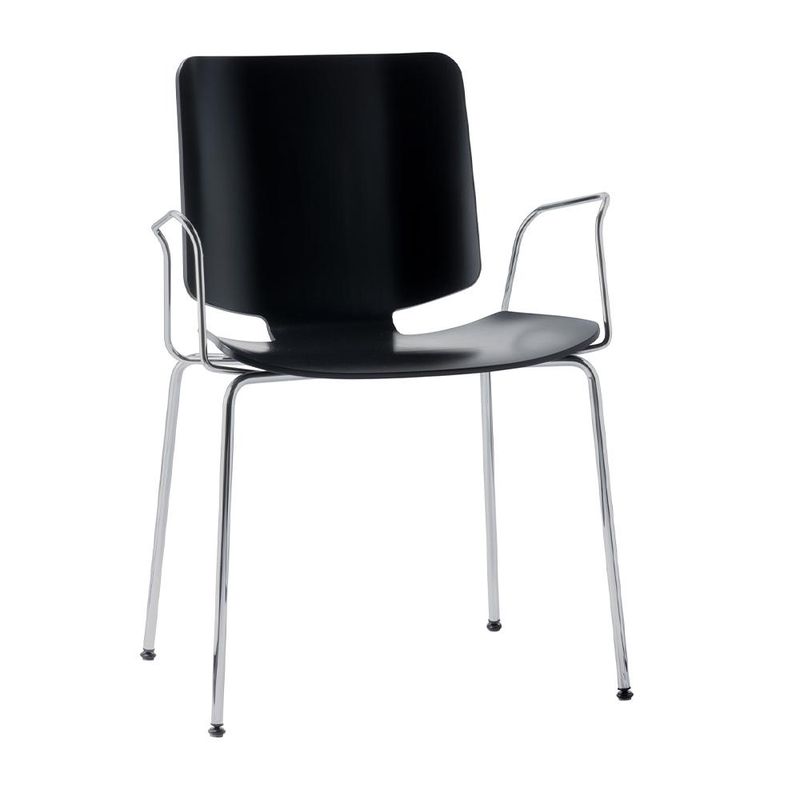

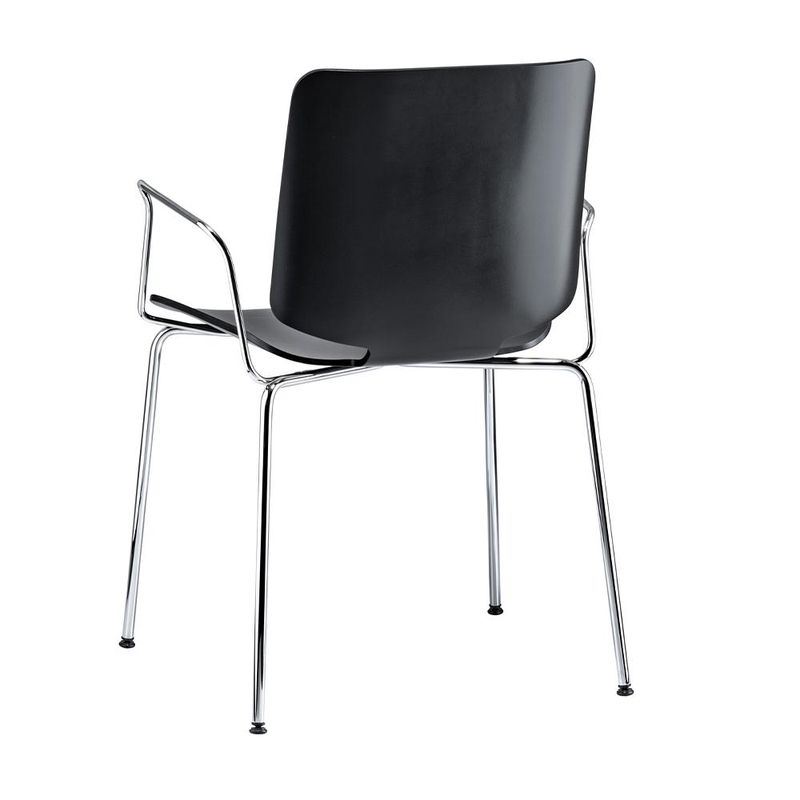

Dimensions | 1445 with armrests
| Width: | B | 59,0 cm | ||
| Depth: | T | 54,5 cm | ||
| Armrest height: | AH | 65,5 cm | ||
| Total height: | H | 83,0 cm | ||
| Seat height: | SH | 45,0 cm | ||
| Weight: | 6,5 kg | |||
| 7,0 kg (seat padding) 7,5 kg (front side padding) 7,0 kg (fully upholstered) |
Dimensions | 1450
| Width: | B | 54-72 cm | ||
| Depth: | T | 60-72 cm | ||
| Total height: | H | 76 cm | ||
| Seat height: | SH | 40 cm | ||
| Weight: | 7,0 kg | |||
| 7,5 kg (seat padding) 8,0 kg (front side padding) 7,5 kg (fully upholstered) |

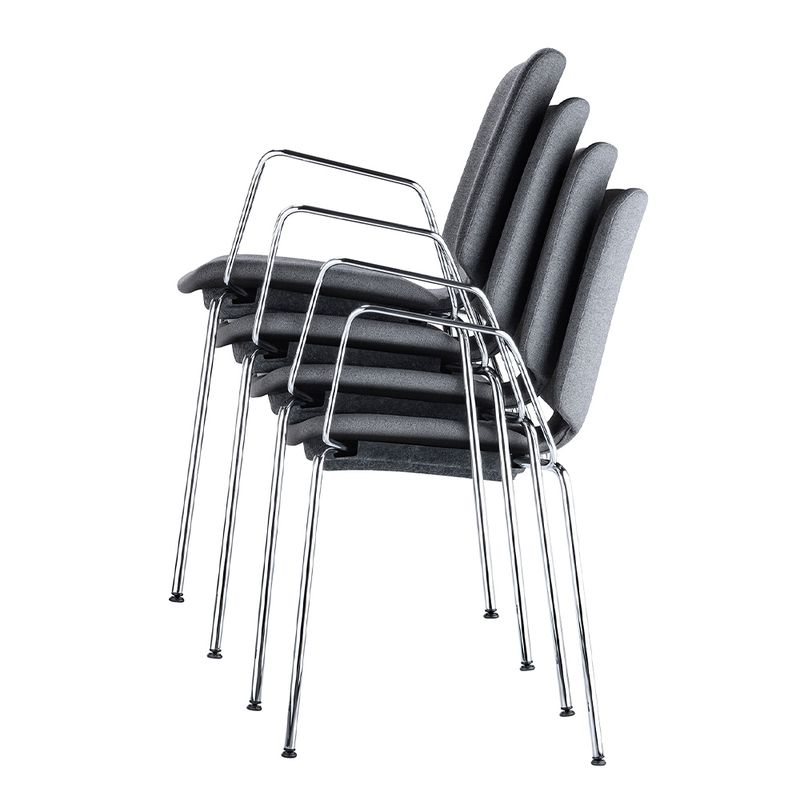

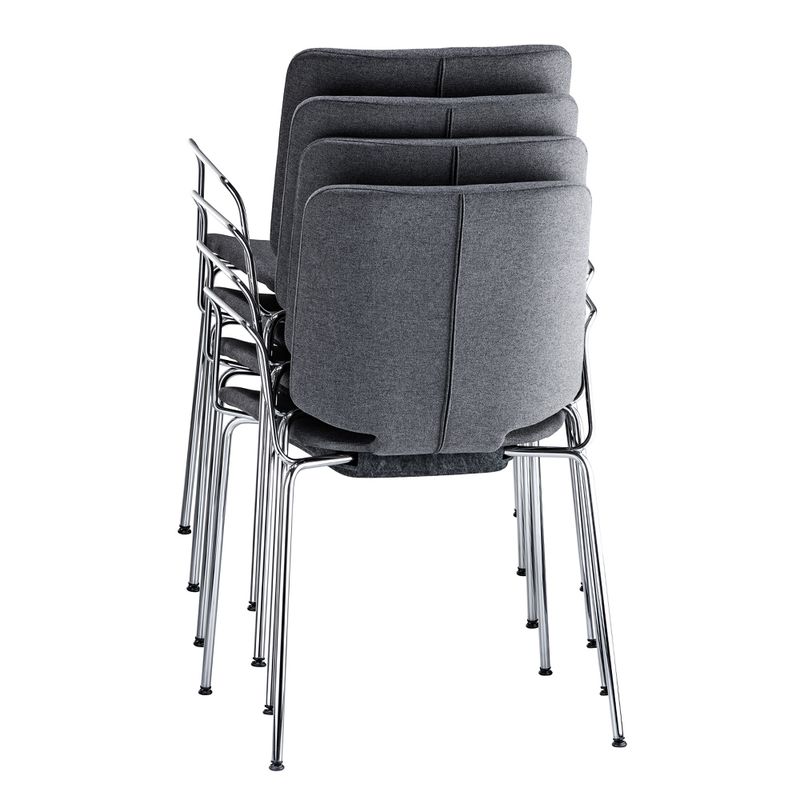

Stackability | 1440-1446
Stackability requires optional stacking protection.
| Stacking type: | front stapling, stackable 6 chairs | |
| Required floor space: | Length: 70 cm | |
| Width: 57 cm without armrests Width: 59 cm with armrests Height: 114 cm |
Andreas Ostwald
Andreas Ostwald (born 1964) finished an education as state-certified ceramic designer in the Porcelain Factory Friesland (German: Porzellanfabrik Friesland) in Kiel.
There he fell in love with the white gold. During the prototype production of porcelain production, you learn the mastery of three-dimensional curving and the spherical area arch within only tenths of millimeters by manual labor.
After his studies, he worked as designer for several offices and companies.
He taught the method of design process for ten years at the Muthesius College in Kiel before he went to HFK Bremen in 2006 and taught integrated design there until 2013.
In product design, his interests not only lie in the development of seating furniture but also in the design of lamps for national and international manufacturers.
He was a member of the shaping council (German: Rat für Formgebung) and was a member of many expert panels. His works received a lot of renowned awards.
Andreas Ostwald lives in Harvestehude with his wife and his three daughters.
